Bondhus Balldriver ® Hex Tools

Products         BLX sets         BSX sets         Gorilla Grip

Why a BALLDRIVER ® Hex Tool?

	Angle Entry to 25° Works in hard to reach areas Faster insertion and removal
	Fast funnel entry Eliminates wasted time even in blind applications Full depth engagement Reduces "stripping" problems
	Ergonomic design Allow natural hand and wrist rotation Turns full 360° in location Reduces user fatigue



Balldriver ® Products

• Balldriver ® Blades - Inch Series 101         Metric Series 101
  Versatile Balldriver blades will take a variety of handle types.
  Larger sizes can us used directly in socket wrenches and power tools.


• Balldriver ® Hex Drivers - 106 Standard Series         107 Long Series
  These screwdrivers feature color coded and ergonomically designed handles, 8650 tool steel blades and the best ballpoint in the industry.
  Sized in inch and metric, they are available in regular and long lengths


• Balldriver ® Power Bits - Inch Series 108         Metric Series 108
  Designed for power tools having 1/4" hex adapter.
  Saves time and increases productivity.
  3" overall blade length


• Balldriver ® L-Wrenches - Inch Series 109         Metric Series 109
  These L-wrenches save time with the ballpoint on the long blade to reach remote and blind locations.
  The short end allows high torque and features precision chamfering that eliminates cut off burrs.
  Cut off burrs found on other common hex key often interfere with socket engagement.


• Balldriver ® Insert bits - Inch Series 110         Metric Series 110
  For hand and power tools having a 1/4" hex adapters.
  Ideal for production and assembly operations where time is critical.
  1" overall blade length


• Balldriver ® T-handle Hex Tools - Inch Series 131/132         Metric Series 131/132
  They feature welded steel handles with cushion grips sized for maximum torque while protecting the ball point and screw from rounding or stripping.
  Each tool provides for long reach with its 8650 steel blade.
  series 132 have straight hex


• Balldriver ® Hex Drivers - 137 Extra Long Series
  These screwdrivers feature color coded and ergonomically designed handles, 8650 tool steel blades and the best ballpoint in the industry.
  Sized in inch and metric, they are available in extra long lengths



• 14" T-Handle line straight hex tip tools - 164 Series



• Stubby drivers - 165 Series
  Stubby hex keys are the perfect solution for reaching an area too restricted to be accessible with a standard hex keys.



• 14K gold plated tools    -Inch 379 / Metric 380 Series
  This GoldGuard™ finish provides good corrosion resistance, while making tools easier to find on the work bench and in the tool box.

BALLDRIVER ® L-Wrench sets

Catalog No.	Model	Sizes	Tools per set
INCH SETS INCH
10932	BLX8	.050,1/16,5/64,3/32,7/64,1/8,9/64,5/32	8
10936	BLX12	.050,1/16,5/64,3/32,7/64,1/8,9/64, 5/32,3/16,7/32,1/4,5/16	12
10937	BLX13	.050,1/16,5/64,3/32,7/64,1/8,9/64, 5/32,3/16,7/32,1/4,5/16,3/8	13
10938	BLX10	1/16,5/64,3/32,7/64,1/8,9/64,5/32,3/16,7/32,1/4	10
10945	BLX7	5/64,3/32,7/64,1/8,9/64,5/32,3/16	7
10946	BLX6mm	1.5,2,2.5,3,4,5,6	6
METRIC SETS  METRIC
10999	BLX9mm	1.5,2,2.5,3,4,5,6,8,10	9

All sets are packaged in patented Bondhex cases. Wrenches slip easily into individually marked slots and twist to lock securely in place. Cases are color coded. Yellow for inch and red for metric.

BALLDRIVER ® Hex Driver Sets

Catalog No.	Model	Sizes	Tools per set	Pkg. Style
Standard INCH Sets Standard INCH Sets
10632	BSX8S	.050,1/16,5/64,3/32,7/64,1/8,9/64,5/32	8	Pouch
10633	BSX8	7/64,1/8,9/64,5/32,3/16,7/32,1/4,5/16	8	Roll Up
10637	BSX13	.050,1/16,5/64,3/32,7/64,1/8,9/64, 5/32,3/16,7/32,1/4,5/16,3/8	8	Molded
10645	BSX7	5/64,3/32,7/64,1/8,9/64,5/32,3/16	7	Pouch
Longer Length INCH Sets
10737	BSX11L	5/64,3/32,7/64,1/8,9/64,5/32,3/16,1/4,5/16,3/8	11	Moulded
Standard METRIC Sets  Standard METRIC Sets
10686	BSX6mm	1.5,2,2.5,3,4,5	6	Pouch
10687	BSX7mm	1.27,1.5,2,2.5,3,4,5	7	Pouch
10699	BSX9mm	1.5,2,2.5,3,4,5,6,8,10	9	Molded
Longer Length METRIC Sets
10733	BSX8mmL	2,2.5,3,4,5,6,8,10	8	Molded

Individual Blades and Bits

Individual BALLDRIVER ® Blades
Inch Series 101

Catalog No. Size Blade Length Inch Metric 10102 .050" 3.4 85 10103 1/16" 3.6 90 10104 5/64" 3.8 95 10105 3/32" 4.0 100         10106 7/64" 4.3 107 10107 1/8" 4.5 112 10108 9/64" 4.8 120 10109 5/32" 5.0 125         10110 3/16" 5.5 137 10111 7/32" 6.0 150 10112 1/4" 6.4 160 10113 5/16" 7.3 182         10114 3/8" 8.3 207 10115 7/16" 9.1 227 10116 1/2" 10.0 250 10117 9/16" 10.9 272         10118 5/8" 11.8 295 10119 3/4" 13.6 340

Individual BALLDRIVER ® Blades
Metric Series 101

Catalog No. Size Blade Length Inch Metric 10149 1.27 3.4 86 10150 1.5 3.6 91 10152 2 3.9 99 10154 2.5 4.2 107         10156 3 4.7 119 10158 3.5 4.8 122 10160 4 5.3 135 10162 4.5 5.8 147         10164 5 6.3 160 10166 5.5 6.7 170 10168 6 7.2 183 10170 7 7.5 191         10172 8 8.1 206 10174 9 8.6 218 10176 10 9.0 229 10178 11 9.6 244         10180 12 10.5 267 10184 14 12.6 320 10186 17 13.6 345 10188 19 14.6 371

Back to Top of Page

Individual BALLDRIVER ® Hex Drivers Inch
Standard Length Series 106

Catalog No. Size Blade Length Overall Length Inch Inch Metric 10602 .050" 3.2 81 4.7 10603 1/16" 3.3 83 4.8 10604 5/64" 3.5 88 5.3 10605 3/32" 3.7 94 5.6           10606 7/64" 2.9 73 5.1 10607 1/8" 3.1 78 5.3 10608 9/64" 3.3 83 6.1 10609 5/32" 3.5 88 6.4           10610 3/16" 3.8 96 7.3 10611 7/32" 4.2 106 7.7 10612 1/4" 4.7 119 8.6 10613 5/16" 5.6 142 9.4           10614 3/8" 6.5 165 10.4 10615 7/16" 7.6 193 11.5 10616 1/2" 8.5 215 12.5

Individual BALLDRIVER ® Hex Drivers Metric
Standard Length Series 106

Catalog No. Size Blade Length Overall Length MM Inch Metric 10649 1.27 3.2 81 119 10650 1.5 3.4 86 124 10652 2 3.5 89 138 10654 2.5 3.9 99 146           10656 3 3.3 81 139 10658 3.5 3.5 89 143 10660 4 3.8 97 170 10662 4.5 4.3 109 182           10664 5 4.3 109 199 10666 5.5 5.0 127 215 10668 6 5.4 137 227 10670 7 5.7 145 234           10672 8 6.4 163 261 10674 9 6.9 175 273 10676 10 7.3 185 283

Back to Top of Page

Individual BALLDRIVER ® Hex Drivers Inch
Longer Length Series 107

Catalog No. Size Blade Length Overall Length Inch Inch Metric 10704 5/64"L 5.0 127 6.9 10705 3/32"L 5.5 140 7.3 10706 7/64"L 6.0 152 8.2 10707 1/8"L 6.5 165 8.7           10708 9/64"L 7.0 178 9.9 10709 5/32"L 7.5 191 10.4 10710 3/16"L 8.0 203 11.5 10711 7/32"L 8.5 216 12.0         10712 1/4"L 9.0 229 12.9 10713 5/16"L 9.5 241 13.4 10714 3/8"L 10.0 254 13.9

Individual BALLDRIVER ® Hex Drivers Metric
Longer Length Series 107

Catalog No. Size Blade Length Overall Length MM Inch Metric 10752 2L 4.7 119 168 10754 2.5L 5.5 140 188 10756 3L 6.3 160 216 10760 4L 7.1 180 253           10764 5L 7.9 201 289 10768 6L 8.7 221 309 10772 8L 9.5 241 338 10776 10L 10.2 259 358

Back to Top of Page

Individual BALLDRIVER ® Power Bits
Inch Series 108

Catalog No. Size Blade Length Inch Metric 10804 5/64" 3.0 74 10805 3/32" 3.0 74         10806 7/64" 3.0 74 10807 1/8" 3.0 74 10808 9/64" 3.0 74 10809 5/32" 3.0 74         10810 3/16" 3.0 74 10811 7/32" 3.0 74 10812 1/4" 3.0 74 10813 5/16" 3.0 74         10814 3/8" 3.0 74 10816 1/2" 3.0 74

Individual BALLDRIVER ® Power Bits
Metric Series 108

Catalog No. Size Blade Length Inch Metric 10852 2 3.0 74 10854 2.5 3.0 74         10856 3 3.0 74 10860 4 3.0 74         10864 5 3.0 74 10868 6 3.0 74         10872 8 3.0 74 10876 10 3.0 74 10880 12 3.0 74

Back to Top of Page

Individual BALLDRIVER ® L-Wrenches
Inch Series 109

Catalog No. Size Blade Length Inch Metric 10902 .050" 2.8 71 10903 1/16" 3.0 76 10904 5/64" 3.2 81 10905 3/32" 3.4 86         10906 7/64" 3.6 91 10907 1/8" 3.8 97 10908 9/64" 3.9 99 10909 5/32" 4.1 104         10910 3/16" 4.5 114 10911 7/32" 4.9 124 10912 1/4" 5.2 132 10913 5/16" 6.0 152         10914 3/8" 6.8 152 10915 7/16" 7.5 191 10916 1/2" 8.3 211 10917 9/16" 9.0 229         10918 5/8" 9.8 249 10919 3/4" 11.3 287

Individual BALLDRIVER ® L-Wrenches
Metric Series 109

Catalog No. Size Blade Length Inch Metric 10949 1.27 2.8 71 10950 1.5 3.0 76 10952 2 3.2 81 10954 2.5 3.5 89         10956 3 3.9 99 10958 3.5 4.0 102 10960 4 4.3 109 10962 4.5 4.7 119         10964 5 5.0 127 10966 5.5 5.5 140 10168 6 5.9 150 10970 7 6.0 152         10972 8 6.7 170 10974 9 7.1 180 10976 10 7.4 188 10978 11 7.9 201         10980 12 8.7 221 10984 14 10.2 259 10986 17 11.0 279 10988 19 11.6 295

Back to Top of Page

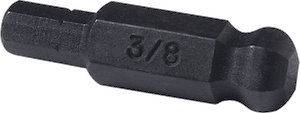

Individual BALLDRIVER ® Insert Bits
Inch Series 110

Catalog No. Size Blade Length Inch Metric 11004 5/64" 1.0 25 11005 3/32" 1.0 25         11006 7/64" 1.0 25 11007 1/8" 1.0 25 11008 9/64" 1.0 25 11009 5/32" 1.0 25         11010 3/16" 1.0 25 11011 7/32" 1.0 25 11012 1/4" 1.0 25 11013 5/16" 1.0 25         11014 3/8" 1.0 25 11016 1/2" 1.0 25

Individual BALLDRIVER ® Insert Bits
Metric Series 110

Catalog No. Size Blade Length Inch Metric 11052 2 1.0 25 11054 2.5 1.0 25         11056 3 1.0 25 11060 4 1.0 25         11064 5 1.0 25 11068 6 1.0 25         11072 8 1.0 25 11076 10 1.0 25 11080 12 1.0 25

Individual BALLDRIVER ® T-Handle Hex Tools Inch
Series 131 Ballpoints        Series 132 Straight Hex

Catalog No. Size Blade Length Handle Width Inch Metric Inch Metric 13205 3/32"* 4.0 100 2.0 50 13206 7/64"* 4.2 106 2.0 50 13207 1/8"* 4.5 114 2.0 50 13208 9/64"* 4.7 119 2.0 50             13109 5/32" 8.5 215 2.0 50 13110 3/16" 9.2 234 2.0 50 13111 7/32" 9.6 244 3.5 88 13112 1/4" 10.1 256 3.5 88             13113 5/16" 10.5 267 5.0 125 13114 3/8" 10.8 274 5.0 125

* Straight hex only

Individual BALLDRIVER ® T-Handle Hex Tools Metric
Series 131 Ballpoints        Series 132 Straight Hex

Catalog No. Size Blade Length Handle Width Inch Metric Inch Metric 13254 2.5 * 4.0 100 2.0 50 13256 3 * 4.3 110 2.0 50 13160 4 * 7.8 200 2.0 50 13164 5 * 8.9 225 2.0 50             13168 6 9.5 240 3.5 88 13172 8 10.2 260 5.0 125 13176 10 11.0 280 5.0 88

* Straight hex only

Balldriver ® Screwdriver Singles - Extra Long Length - Inch Part No. Description Blade Length 13702 .050" 11.1" 13703 1/16" 11.1" 13704 5/64" 11.0" 13705 3/32" 11.0" 13706 7/64" 10.6" 13707 1/8" 10.6" 13708 9/64" 10.5" 13709 5/32" 10.5" 13710 3/16" 10.3" 13711 7/32" 10.3" 13712 1/4" 10.3" 13713 5/16" 10.3" 13714 3/8" 10.3" 13715 7/16" 10.5" 13716 1/2" 10.5"

Balldriver ® Screwdriver Singles - Extra Long Length - Metric Part No. Description Package Qty Blade Length 13750 1.5mm 1 11.0" 13752 2mm 1 11.0" 13754 2.5mm 1 11.0" 13756 3mm 1 10.6" 13760 4mm 1 10.5" 13764 5mm 1 10.3" 13768 6mm 1 10.3" 13772 8mm 1 10.3" 13776 10mm 1 10.3"







Ballpoints tools for star recessed screws, i.e. TORX brand

• Only one insertion required

• Quick fastening from an angle

• Easy access to blind locations



The same revolutionary method that has made the Balldriver tools a standard in the industry is now available for use in star recessed screws i.e. Torx brand.

The convenient sets include the most popular sizes.

The 8 piece L-wrench set is packaged in the patented Bondhex case. Wrenches slip in and out easily and lock in place with a slight twist.

Back to Top of Page

New Product

The Bondhus Quality Tradition Continues With The Introduction of The Strongest Foldup Hex Tools in the World.

Newman Tools introduces the GorillaGrip tm - the strongest holdup hex tool available in the world today .

Our attractive one piece resin handle is the most durable on the market and has a comfortable ergonomic design with no sharp edges..

The chamfered ends of the hex blades eliminate burrs and assure easier entry to the screwhead with a snug fit every time.

Industrial users, maintenance personnel and DIY'ers will take pride in adding these quality foldups to their tool boxes.

GorillaGrip tm Foldups are available in 4 different hex key arrangements and one Torx

Catalogue No.	Set	Sizes
12591	9 Inch	.050,1/16,5/64,3/32,7/64,1/8,9/64,5/32,3/16"
12589	9 Inch	5/64,3/32,7/64,1/8,9/64,5/32,3/16,7/32,1/4"
12592	7 Metric	1.5,2,2.5,3,4,5,6mm
12587	7 Metric	2,2.5,3,4,5,6,8mm
12632	8 Torx	T6,T7,T8,T9,T10,T15,T20,T25

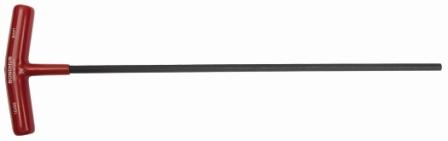

Bondhus Corporation has expanded its’ world class T-Handle line to include 14” straight hex tip tools.

Only Bondhus T’s offer strength, comfort and enhanced grip by welding an ergonomically designed heavy duty handle to the blade, then dipping it in cushioning plastic, to reduce fatigue.



The offering thus far includes the following metric sizes:



·         #16456           3mm

·         #16460           4mm

·         #16464           5mm

·         #16468           6mm

·         #16472           8mm
