Chapman Mini Ratchet Tools Kits
link to product description
| link to product specs
(click to view 29k )
Kit 1000 is a hard pack
containing a ratchet, extension,
and scredriver handle plus the most popular Chapman
adapters in a flip open leather case.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screwdriver Handle
7 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | |
| 1/16" | 7/64" | ||
| 5/64" | 1/8" |
5 - Slotted Head Adapters: (Size indicates width of blade)
| 0.125" x 0.023" | 0.230" x 0.037" | 0.375" x 0.050" |
| 0.190" x 0.037" | 0.250" x 0.037" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |

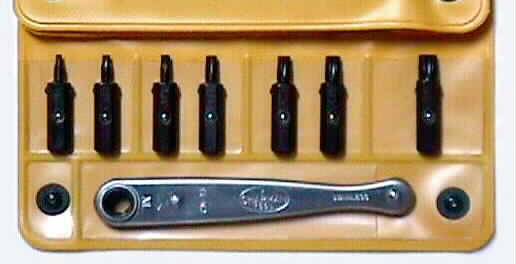

(click to view) Kit 1068 is a soft-pack containing one
Chapman Ratchet plus seven TORX® Adapters.
Kit contains the following tools:
1 - Chapman Ratchet
7 - TORX® Adapters: (Size indicates major diameter, (TORX #))
| .065" (T-6) | .107" (T-10) | .151" (T-20) | .216" (T-30) |
| .090" (T-8) | .128" (T-15) | .173" (T-25) |
(click to view 45k) Kit 1313 is a convienent soft-pack containing
one Chapman Ratchet plus all of the Allen Hex
Type Adapters from .050" to 5/16".
Kit contains the following tools:
1 - Chapman Ratchet
12 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" | 5/16" |
(click to view 44k) Kit 1316 is an extremely popular soft-pack
containing
a Chapman ratchet plus fifteen of our most often used
adapters.
Kit contains the following tools:
1 - Chapman Ratchet
10 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 5/32" | 1/4" |
| 1/16" | 1/8" | 3/16" | 5/16" |
| 5/64" | 7/32" |
2 - Slotted Head Adapters: (Size indicates width of blade)
| 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
(click to view 39k)
Kit 1316X is another very
popular soft-pack
containing one Chapman Ratchet plus all our
Allen Hex Type Adapter sizes from
.050" through 1/4".
Kit contains the following tools:
1 - Chapman Ratchet
11 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" |
2 - Slotted Head Adapters: (Size indicates width of blade)
| 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
(click to view 22k)Kit 1500 broadens the 9600 Kit applications
with our Allen Hex and Metric Hex adapters,
in a soft pack case..
Kit contains the following tools:
11 - Allen Hex Adapters: (Size indicates distance across flats)
| 3/32" | 9/64" | 7/32" | |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" | 5/16" |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
7 - Metric Adapters: (Size indicates distance across flats)
| 1.5 mm | 2.5 mm | 4.0 mm |
| 2.0 mm | 3.0 mm | 5.0 mm |
| 6.0 mm |
(click to view 37k) Kit 2307 is a convenient soft-pack available
at a remarkabke low price containing one
Chapman Ratchet plus seven Metric Hex
Type Adapters.
Kit contains the following tools:
1 - Chapman Ratchet
7 - Metric Adapters: (Size indicates distance across flats)
| 1.5 mm | 2.5 mm | 4.0 mm |
| 2.0 mm | 3.0 mm | 5.0 mm |
| 6.0 mm |

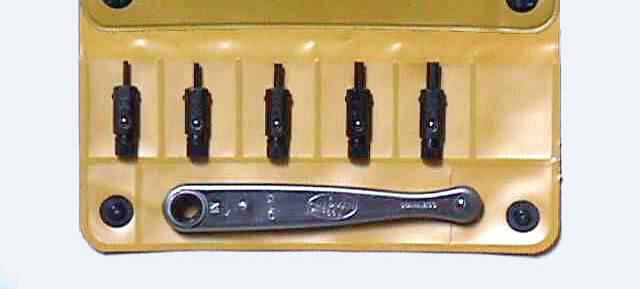

(click to view24k)
Kit 3307 is a tough vinyl soft-pack
containing
one Chapman Ratchet plus five Bristol
Multispline Adapters.
Kit contains the following tools:
1 - Chapman Ratchet
5 - Bristol Multispline Adapters: (Size indicates major diameter)
| .060" | .096" | .145" |
| .072" | .111" |

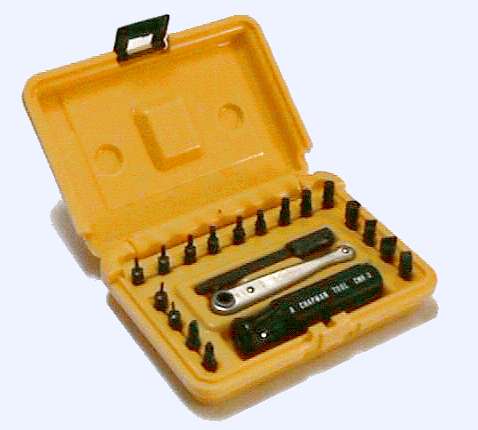

(click to view) Kit 4320 is the most popular tool set
in the Chapman
line. This kit contains a wide variety of the most often
used adapters. The crush resistant, blow molded
Polyethelene case (4 1/2" x 6 1/2") holds each part in a
ready to use position.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
12 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" | 5/16" |
2 - Slotted Head Adapters: (Size indicates width of blade)
| 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |

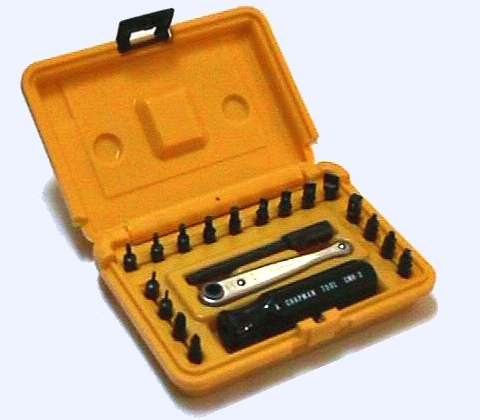

(click to view18k) Kit 4360 contains a variety of the most
often
used adapters, plus three square head adapters,
in a hard pack case..
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
7 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 7/64" | 3/16" |
| 1/16" | 1/8" | |
| 3/32" | 5/32" |
4 - Slotted Head Adapters: (Size indicates width of blade)
| 3/16" | 7/32" | 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
3 - Square Head Adapter: (Size indicates distance across flats)
| No. 1 | No. 2 | No. 3 |

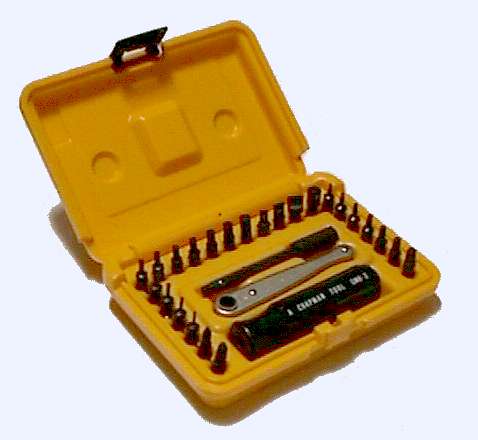

(click to view 18k) Kit 6810 contains our standard assortment
of
adapters, plus seven TORX® adapters in a hard
pack case.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
11 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" |
3 - Slotted Head Adapters: (Size indicates width of blade)
| 3/16" | 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
7 - TORX® Adapters: (Size indicates major diameter, (TORX #))
| .065" (T-6) | .107" (T-10) | .151" (T-20) | .216" (T-30) |
| .090" (T-8) | .128" (T-15) | .173" (T-25) |
(click to view 17k) Kit 7321 contains our standard assortment
of the
most often used Allen Hex adapters, plus six open
slots for, your customization, in a hard pack case.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
12 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 5/16" |
| 1/16" | 7/64" | 5/32" | 7/32" |
| 5/64" | 1/8" | 3/16" | 1/4" |
3 - Slotted Head Adapters: (Size indicates width of blade)
| 3/16" | 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |

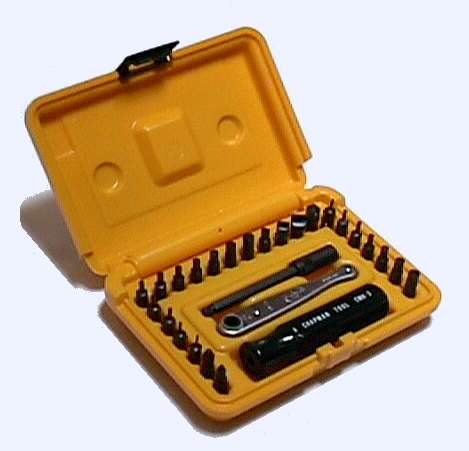

(click to view 18k) Kit 7331 contains our standard assortment
of the
most often used adapters, plus our Metric adapters,
in a hard pack case..
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
11 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" |
3 - Slotted Head Adapters: (Size indicates width of blade)
| 3/16" | 1/4" | 3/8" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
7 - Metric Adapters: (Size indicates distance across flats)
| 1.5 mm | 2.5 mm | 4.0 mm |
| 2.0 mm | 3.0 mm | 5.0 mm |
| 6.0 mm |
(click to view 20k) Kit 7341 contains our standard assortment
of adapters,
plus the Bristol (6-Flute) Multiple Spline adapters in a
hard pack case..
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
12 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | 1/4" |
| 5/64" | 1/8" | 3/16" | 5/16" |
4 - Slotted Head Adapters: (Size indicates width of blade)
| 3/16" | 1/4" | 3/8" | 7/32" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
1 - Square Drive Adapter: (Size indicates distance across flats)
| 1/4" |
5 - Bristol Multispline Adapters: (Size indicates major diameter)
| .060" | .096" | .145" |
| .072" | .111" |
(click to view 18k) Kit 8900 is our Deluxe Gunsmithing Kit,
containing
our standard Allen Hex Type adpaters, plus
fourteen specialty Slotted Head adapters designed
for gun repair work, in a hard pack case.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
10 - Allen Hex Adapters: (Size indicates distance across flats)
| .050" | 3/32" | 9/64" | 7/32" |
| 1/16" | 7/64" | 5/32" | |
| 5/64" | 1/8" | 3/16" |
12 - Slotted Head Adapters: (Size indicates blade width x thickness)
| 0.125" x 0.023" | 0.230" x 0.037" | 0.328" x 0.037" |
| 0.160" x 0.030" | 0.250" x 0.025" | 0.375" x 0.025" |
| 0.190" x 0.025" | 0.250" x 0.037" | 0.375" x 0.037" |
| 0.190" x 0.037" | 0.328" x 0.030" | 0.375" x 0.050" |
2 - Phillips Head Adapters: (Size indicates standard Phillips numbers)
| No. 1 | No. 2 |
(click to view) Kit 9600 is our Basic Gunsmithing Kit,
containing
fourteen specialty Slotted Head adapters designed
for gun repair work, and one Allen Hex Type adpater
for tightening set screws in the handle and extension.
All packaged in a hard pack case.
Kit contains the following tools:
1 - Chapman Ratchet
1 - Extension
1 - Screw Driver Handle
14 - Slotted Head Adapters: (Size indicates blade width x thickness)
| 0.125" x 0.023" | 0.230" x 0.037" | 0.328" x 0.037" | Spares for |
| 0.160" x 0.030" | 0.250" x 0.025" | 0.375" x 0.025" | 0.125" x 0.023" |
| 0.190" x 0.025" | 0.250" x 0.037" | 0.375" x 0.037" | 0.160" x 0.030" |
| 0.190" x 0.037" | 0.328" x 0.030" | 0.375" x 0.050" |
1 - Allen Hex Adapter: (Size indicates distance across flats)
| .050" |
2 - Phillips Head Adapters: (Size indicates
standard Phillips numbers)
| No. 1 | No. 2 |
