Welding gauges are available for checking alignment, checking dimensions before welding, verifying weld dimensions, and checking porosity of welds.



Hi-Lo Welding Gage

WG-1

  Economy Single Purpose Hi-Lo Welding Gage WG-2

Adjustable Fillet Weld

WG-3



Bridge Cam Gauge

WG-4

"V-Wac" Weld Gauge

WG-5



Automatic Weld Size Weld Gauge

WG-6

Gage WTPS Gauge

WG-7



7 Piece Fillet Weld Set

WG-8

wg-81

8 Piece Fillet Weld Set

WG-81,  1 1-1/8 to 2"

  wg-82

8 Piece Fillet Weld Set

WG-82,  2-1/8 to 3"

Skew-T Fillet Weld Gauge

WG-9



Welders, CWI Inspectors, Instructors

WG-12

Dial/Pit Depth Gauge

WG-13



"Mini Sub" Socket Weld Gauge

WG-14



Mini Fillet Weld Keys

WG-16



Pipe Pit Gage

WG-17

  WG-DP-1

Digital Pit Gauge

WG-DP-1, WG-DP-2

Mini "Gap Clamps"




Measuring Gages | Measuring Fillets | Measuring Keys



Weld Measuring Gauges permit you to accurately check welds of varying sizes quickly and easily. You can measure Weld Throat Thickness, Butt Fillet Type Welds, Weld Length, Misalignments (High-Low), and much more depending upon the Gauge selected.

Weld Measuring Gauges are sturdy, well-made, and come in numerous types to perfectly fit your requirements.

Our Weld Measuring Gauges will surely provide you with many years of service whether in the shop or in the field.


WG-DWG Digital Welding Gage

With LCD display, will hold either the zero setting or measured value at any position for differential measurements.

Digital Welding Gage - With LCD display, will hold either the zero setting or measured value at any position for differential measurements.



WG-3 Adjustable Fillet Weld Gage

Unequal Leg Measurement Feature

Measure Fillet Weld & Weld Throat Thickness





WG-6 Automatic Weld Size Weld Gauge

For Accurate Calibration of Butt Fillet Type Welds






WG-4 Bridge Cam Gage

The following measurements are possible in either inches or millimeters: Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, Weld Throat Size, and more.






WG-13D Combination 0" - 10" Digital/Pit Depth Gauge

Accuracy Meets or Exceeds Federal Specs


WG-2 Economy Single Purpose Hi-Lo Welding Gage

Eliminates Rejects - Improves Productivity, Available in Standard or Metric


WG-1 HI-LO Welding Gage

Measures Internal Alignment, New Slim Design Is 30% Lighter


WG-14 "Mini Sub" Socket Weld Gauge

Check Throat Dimensions, Leg Length, All Stainless Steel


WG-17 Pipe Pit Gage

Range is 0 to 1/2" in 1/64" & .020 Increments, Arm Can be Locked in Place at Any Dimension, All Stainless Steel

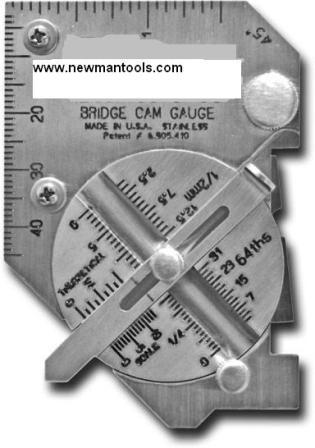

WG-4 mini Pocket Bridge Cam Gauge

Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more.


WG-9 Skew-T Fillet Weld Gauge
w/ Calculator

Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side


WG-5 "V-WAC" Single Weld Gage

Check Undercut, Crown Height, Porosity, Pits, All Stainless Steel








Weld Measuring Keys, like our Weld Measuring Fillets, are the perfect solution for the repeated checking of particular weld sizes. In fact, each Welder can carry a set for Pre-Inspection purposes.

Weld Measuring Keys are sturdy, well-made, and come in various handy sizes.

Our Weld Measuring Keys will surely provide you with many years of service whether in the shop or in the field.



WG-16 Mini Fillet Weld Keys

11 Different Sizes in Standard with Metric Equivalent Markings - 1/8" to 1"




WG-10 Pocket Fillet Weld Gauge

Pocket Size - Measures 8 Size Fillets







Weld Measuring Fillets, like our Weld Measuring Keys, are the perfect solution for the repeated checking of particular weld sizes. Weld Measuring Fillets make genuine time-savers that you will find indispensible ... and wonder how you ever worked without them.

Weld Measuring Fillets are sturdy, well-made, and come in various handy sizes.

Our Weld Measuring Fillets will surely provide you with many years of service whether in the shop or in the field.


WG-8 7 Piece Fillet Weld Set

Check Fillet Leg & Throat Size





WG-7 WTPS Gage

Precision made from stainless steel. All markings and dimensions are laser engraved for ease and clarity when reading.




















link to how to read welding gauges

 link to price list
