Safety Boy Flange Spreader

    Instructions   |      models 101  |  102103 | 104

SPREADS ALL TYPES OF FLANGED PIPE
CONNECTIONS TO INSERT BLINDS-GASKETS-ORIFICES

SAVE TIME & ELIMINATE HAZARDS
OF SPREADING FLANGES

safety boy flange spreader
  • Eliminates many hazards. No hammer blows. No chisels. No flying wedges. No sparks.
  • Simply apply pressure to ratchet handle after "Safety Boy" Tool is positioned on flange...it is that easy.
  • Use "Safety Boy" for the really safe way to drastically reduce downtime.
  • Saves energy loss by allowing repairs to be made quicker.

Eliminates hazards of leaking flange gaskets by using "Safety Boy" for quick and easy removal of defective gaskets and the replacement of new gaskets.



"Safety Boy" tools are now on the job in countries throughout the world providing the safest, quickest and most economical way to spread a pipe flange.

"Safety Boy" is lightweight, easy to carry. Easy to assemble. Ready to operate in seconds. Can be operated with ease, even in cramped quarters.

Easy to use. Pressure applied to ratchet handle forces circular cam wedge between flanges to make the separation.

All models reasonably priced for wide usage on pipelines, in refineries, chemical plants, food processing plants, utility companies, in hospitals, on ships...wherever there is piping maintenance.

MODEL 101 KIT





USING THE SAFETY BOY

Instructional Animation


1. Remove one flange
bolt and securely anchor
Safety Boy tool.
2. Loosen remaining bolts.
Remove bolts necessary to
service flanges
3. Apply pressure to ratchet
handle to force circular cam
wedge between flanges to
make flange separation.

Models





Model SAFB.101 Kit Safety Boy Flange Spreader Tool

 Includes Heavy duty 3/4" drive ratchet and Metal Carrying case ( Shipping wt. 20 lbs)


Range: ASA Std. Raised Face Flanges

150# Flanges through 20" pipe size
300# Flanges through 6" pipe size.

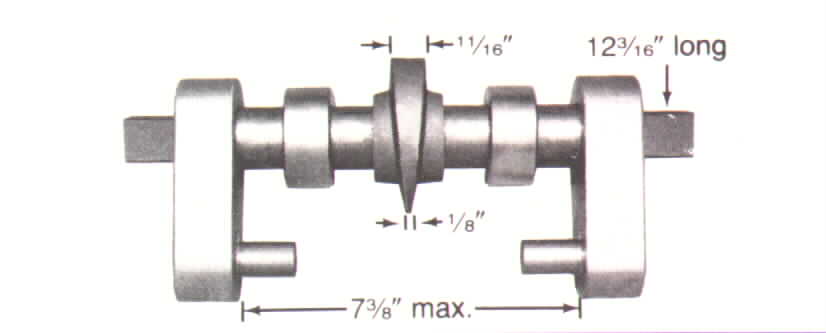

Model SAFB.102 Kit Safety Boy Flange Spreader Tool

Includes model102 flange spreader tool, Heavy duty 1" square drive ratchet, reversible, and Metal Carrying case ( Shipping wt. 40 lbs)
102 safety boy flange spreader  Range: ASA Std. Raised Face Flanges

150# Flanges 12" through 24" pipe size

300# Flanges through 24" pipe size

Range: Large Dia. Flanges W.S.P. @750° F

150# Flanges 26" through 72" pipe size

300# Flanges 26" through 42" pipe size.









Model SAFB.103 Kit Safety Boy Flange Spreader Tool

 Includes model 103 flange spreader tool, Heavy duty 1" square drive ratchet, reversible, and Metal Carrying case ( Shipping wt. 41 lbs)
 103 flange spreader

Range: ASA Std. Raised Face Flanges

400# Flanges through 24" pipe size

600# Flanges through 20" pipe size

900# Flanges through 16" pipe size

1500# Flanges through 8" pipe size

2500# Flanges through 5" pipe size









Model SAFB.104 Kit Safety Boy Flange Spreader Tool

 Includes model 104 flange spreader tool, Heavy duty 1" square drive ratchet, reversible, and Metal Carrying case ( Shipping wt. 42 lbs)
 104 flange spreader

Range: ASA Std. Ring Joint Flanges

150# Ring Joint Flanges through 24" pipe size

300# Ring Joint Flanges through 20" pipe size

400# Ring Joint Flanges through 16" pipe size

600# Ring Joint Flanges through 12" pipe size

900# Ring Joint Flanges through 8" pipe size
