45° FLARING TOOLS

45° FLARING TOOLS

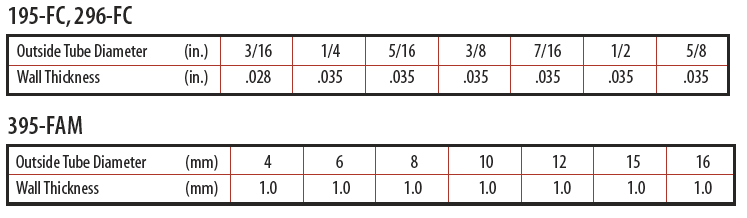

For 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" and 5/8" O.D. tubing.

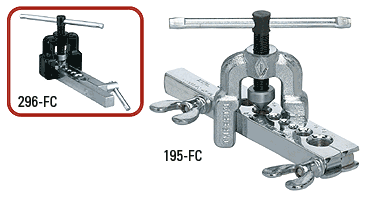

IMP.195-FC Flares 7 sizes of tubing. Rugged forged steel slip-on
yoke and hardened flaring bar. Positive clamping action of
bars prevents tube slippage. Self centering yoke with
swivel-type, hardened steel, chrome-finished flaring cone
forms better flares with less effort. Design of yoke permits
flaring where there is little space between nut and tube end.
Satin finish nickel-chrome plated. Wt. 2.0 lbs.

IMP.296-FC Flares 7 sizes of tubing. Economical, fast operating
tool. Quick slip-on yoke. Easy operating swivel-type,
hardened steel, chrome-finished cone assures smooth
flares. Chrome and black finish. Wt. 1.75 lbs.

45° METRIC SIZE FLARING TOOL
395-FAM Same as 195-FC except for metric size tubing
4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 16 mm O.D. tubing.
45° LARGE SIZE FLARING TOOLS

Flares larger tube sizes. Quick slip-on yoke with hard
chrome-finished, swivel flaring cone reduces effort.
Positive clamping action of flaring bar eliminates tube
movement. Nickel chrome finish.
Conforms to Federal Specification GGG-F-451a Type 1, Class 2. Style A.

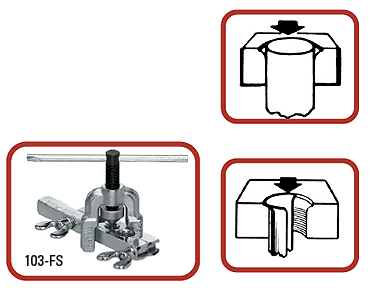

IMP.103-FS For sizes 3/4", 7/8" and 1" O.D. tubing. Wt. 3.75 lbs.

IMP.203-FA For sizes 5/8", 3/4", 7/8" and 1-1/8" O.D. tubing.
Wt. 3.75 lbs.

IMP.375-FS For sizes 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2",
5/8" and 3/4" O.D. tubing. Wt. 3.75 lbs.

IMP.376-FS For sizes 1/2", 5/8", 3/4" O.D. tubing. Wt. 2.0 lbs.

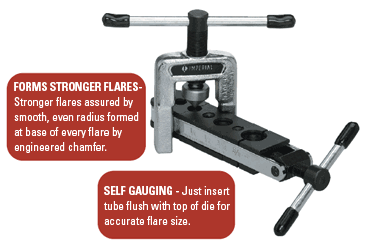

HI-DUTY® FLARING TOOL
For 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" O.D. tubing.

IMP.300-FB Hardened steel, chrome finished cone makes
exceptionally smooth, high strength flares with a radius at
base of flare – instead of the sharp angle formed by ordinary
tools. New slip-on yoke permits use in tight quarters, allows
flaring where there is little space between nut and tube end.
New feed screw design provides smoother, easier operation.
Positive gripping and self-gauging of tube for exact flare
size. Sliding die blocks lock in place by lever clamp action to
ensure even dispersal of force around full diameter of tube
for superior grip. Wt. 1.6 lbs.

Download the Tubing Tool Selector
Reference Guide 01 (PDF)
