Flange Clamp

The Lindapter Type F9 has extra long jaws and is suitable for securing all types of steelwork and the covers of vessels, tanks,etc. It is also a useful general purpose clamp for engineers, welders, fabricators and others.

The nut can be replaced with a handwheel or wrench handle for easy release. Supplied with bolt and nut unless specified otherwise on order.

Finish: Electro-Galvanised.

Ref : 10020

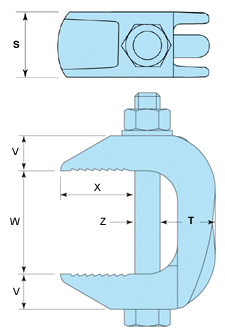

Dimensions

Product Code Bolt Size
(inches)
Z		 X W V T S Weight
(lb/100)
LF9037 3/8 1 3/4 - 1 11/16 1/2 3/4 1 43
LF9050 1/2 1 3/8 1 - 2 3/8 21/32 15/16 1 3/16 95
LF9062 5/8 1 11/16 1 1/8 - 2 3/4 13/16 1 1/8 1 3/8 144
LF9075 3/4 2 1 1/4 - 3 1/4 1 1 3/8 1 3/4 262
LF9100 1 3 1 3/4 - 3 3/4 1 3/16 2 1/4 2 3/16 862

Loadings §

Product Code Bolt Size
(inches)
Z		 Load
(lb)		 Torque
(lb ft)
SAE Bolt Grade 2
LF9037 3/8 440 15
LF9050 1/2 630 29
LF9062 5/8 1260 69
LF9075 3/4 1880 131
LF9100 1 3147 173

§ Special conditions may apply. See Loads and Specifications.

All loads are based on the recommended Safety Factor of 5.

Use of any lower Safety Factor is at the customer's discretion.

Note: It is important that the F9 clamp is only used on flat and parallel surfaces. Under no circumstances must it be used to connect beams with taper flanges. The bolt should be as close as possible to the components being secured.
