1. The Flush Clamp will suit all crossover angles from the
minimums shown below up to and including 90°. When used to
secure beams at angles approaching these minimums, ensure that
the heels of the top and bottom Flush Clamps bear upon each other.
The clamp must not be assembled without the heels touching.
2. When used for 90°connections, the flange width markings
on the product can be used as guides to align the bodies equidistant
at either side of the beam.
3. The single offset tooth on the bolt or washer engages in
the serrations of the clamp body to lock the assembly in position
and prevent the bolts from moving in their slots.
4. The bolt or washer can be moved by half the pitch of the
serrations by rotating through 180° about the axis of the
bolt centres. This enables the bolt to be located correctly -
as close to the flange edge as possible and perpendicular to
the beam flanges.

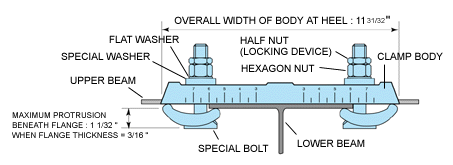

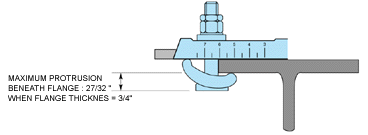

Illustrations featured show the Flush Clamp in use when the
two beams being connected are touching and oriented in the same
plane.
For non-standard applications, please contact
Lindapter Technical Support. |
