Demagnetizers


Specifically designed for use in the tool room or production shop. Demagnetizes milling cutters, drills and small parts. To demagnetize parts, pass the part completely through the opening and out of the magnetic field. For production parts, use a non-magnetic chute and slide the parts through the opening.

All "LTC" series demagnetizers are designed for continuous operation and need no maintenance. To check the magnetism of parts, use Magnetool #FL-1 Field Indicator or #GM-1 Gaussmeter.

Consult Newman Tools for special applications.



The #FL-1 Field indicator is an inexpensive instrument used to indicate the presence of magnetism. Slide the indicator on the surface of the part to determine the presence of magnetism.

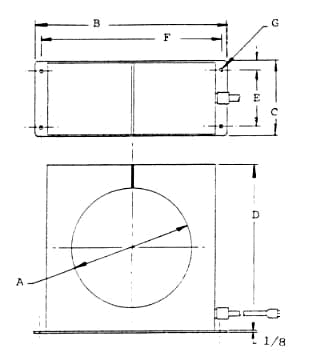

MODEL

A

B

C

D

E

F

G

VOLTS

AMPS

WGT.

MAG.LTC-200

2-7/8

8-1/4

4-1/2

6-1/2

C/L

7-1/2

(2) 13/32

120

1.8

18 lbs.

MAG.LTC-400

4

10

4-7/8

8-1/4

C/L

9

(2) 13/32

120

2.0

25 lbs.

MAG.LTC-600

6

12-1/8

4-7/8

10

3-5/8

11-1/8

(4) 9/32

120

4.6

33 lbs.

MAG.LTC-800

8

16-1/8

5-7/8

14

4-3/8

15-1/8

(4) 9/32

220

8.7

95 lbs.
