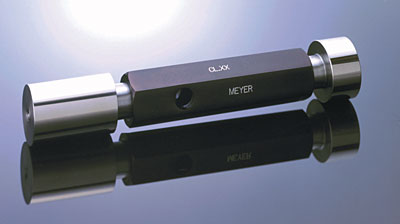

Meyer Taperlock Pin or Plug Gages

Quick Changeover!
The members pop out for quick replacement.  Excellent choice for larger diameter inspection.
  • NIST Traceable.
  • Plus, Minus or Bilateral tolerance.
  • Class XX, X, Y, or Z.
  • Steel or Chrome
Taperlocks - Steel and Chrome
Unilateral Tolerances - Go = PLUS tolerance, NOGO = MINUS tolerance
Size Range Class Lenght Standard Go
Member Only
Lenght Standard NO GO
Member Only
Handle
.105" to .150"
2.67mm to 3.81mm
XX 3/8"
9.5mm
7/32"
5.6mm
00
X
Y
Z
.150" to .230"
3.81mm to 5.84mm
XX 13/32"
10.3mm
9/32"
7.1mm
0
X
Y
Z
.230" to .365"
5.84mm to 9.27mm
XX 3/4"
19.1mm
5/16"
7.9mm
1
X
Y
Z
.365" to .510"
9.27mm to 12.95mm
XX 1"
25.4mm
3/8"
9.5mm
2
X
Y
Z
.510" to .825"
12.95mm to 20.96mm
XX 1 1/4"
31.8mm
1/2"
12.7mm
3
X
Y
Z
.825" to 1.135"
20.96mm to 28.83mm
XX 1 1/2"
38.1mm
5/8"
15.9mm
4
X
Y
Z
1.135" to 1.510"
28.83mm to 38.35mm
XX 1 5/8"
41.3mm
3/4"
19.1mm
5
X
Y
Z
