Nissen Metal Markers
| Ball Point | | Feltip | | Low Chloride Markers | Penamark-S | Solid Paint | |
download Nissen catalogue(2.2 Mb
Ball Point Markers
Features
- Durable Aluminum tubes
- Non-Clogging, tough case-hardened steel points and
precision 440 Stainless Steels balls.
- markers write in any position: horizontal, vertical,
even overhead.
- available in Standard , Low-Chloride or High
Temperature formulations
Metal Marker
The Nissen Metal Marker utilizes a specially-formulated polyurethane paint to provide permanent marking under almost any conditions. The marks will remain bright, clear and legible even on material that will be stored outside for long periods of time or material that will receive heavy abuse.
- Marks on all metals, wood, rubber, glass, etc.
- Writes on any surface; rough, smooth or rusty, wet, oily,
or dry.
- Marks withstand heat and weathering; they won't chip, peel,
fade or rub-off.
- Available in 12 lead-free, high-gloss colors.
White, Yellow, Black, Red, Blue, Green, Orange, Brown, Pink, Purple, Gray, & Tan.
- 3 Point sizes.
5/64", 1/8", 3/16"
Low Chloride Metal Marker
The Nissen Low Chloride Metal Marker was specifically designed to safely mark metals which are attacked by halogens and low melting metallics. It will not impart contaminants that could cause cracking or weakening of the metal, especially with heat applications, such as welding or cutting.
- Marks on rough, smooth, wet, oily or dry surfaces.
- Marks withstand heat and weathering; they won't chip, peel,
fade or rub-off.
- Meets most specifications for Stainless Steel and nuclear
components. Independent Laboratory Certifications of Analysis
are available and traceable to each marker.
- Available in 8 bright, high-gloss colors
White, Yellow, Black, Red, Blue, Green, Orange and Pink
- 3 Point sizes.
5/64", 1/8", 3/16"
THE LOW CHLORIDE METAL MARKERS UPPER TEMPERATURE RANGE IS 400 DEGRESS FARENHEIT TO 800 DEGREES FARENHEIT. WHITE, YELLOW AND BLACK CAN GO HIGHER.
High Temperature Metal Marker
The Nissen High Temperature Metal Marker provides legible markings at temperatures as high as 2100°F (1150°C).
- Marks on any surface; rough, smooth, wet, oily or dry
- available in 2 lead-free colors, white and black, in 1/8
point size.
Penamark
The Nissen Penamark Marker is designed for fabricators. Marks placed on bare metal will bleed through the primer and remain visible. The penetrating action can be stopped, so as not to bleed through the final coating.
- Marks on any surface; rough or smooth; wet, oily or dry.
- Available in dark blue ink with a 3/16" point size.
Feltip Paint Marker
The versatile Nissen Feltip Paint Markers dispense a fast-drying,
high-gloss enamel paint for permanent marking, lettering, coding
and numbering of both interior and exterior surfaces. The markers
are easy-to-use and convenient to carry in your pocket.
- Marks on almost anything: metal, plastic, printed circuit
boards, glass, wood, paper, leather, textiles, etc.
- Writes on any surface: porous or non-porous; rough or smooth;
wet, oily or dry.
- Marks are permanent; they won't chip, peel, fade, or rub-off.
They withstand heat and weathering under adverse conditions.
- Unique precision valve accurately meters flow, so the right
amount of paint passes through the tip.
- Available in 9 bright, high-gloss, lead-free colors.
White, Yellow, Black, Red, Blue, Green, Orange, Silver and Gold
- Standard markers are approximately 1/8" wide line. Also
available in Fine-Line, approximately 0.75mm wide line
- Long-lasting replaceable fiber tips allow full use of the marker

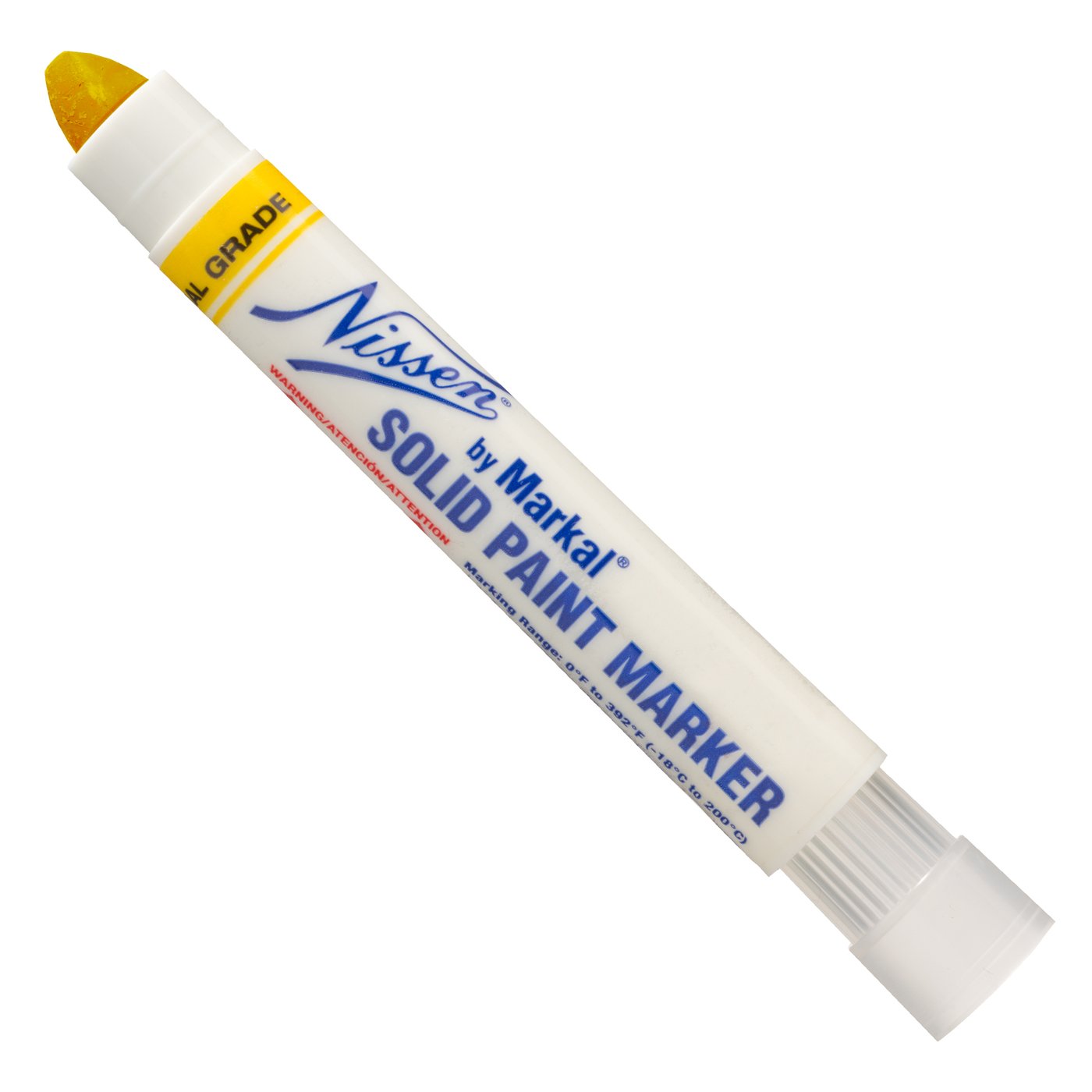

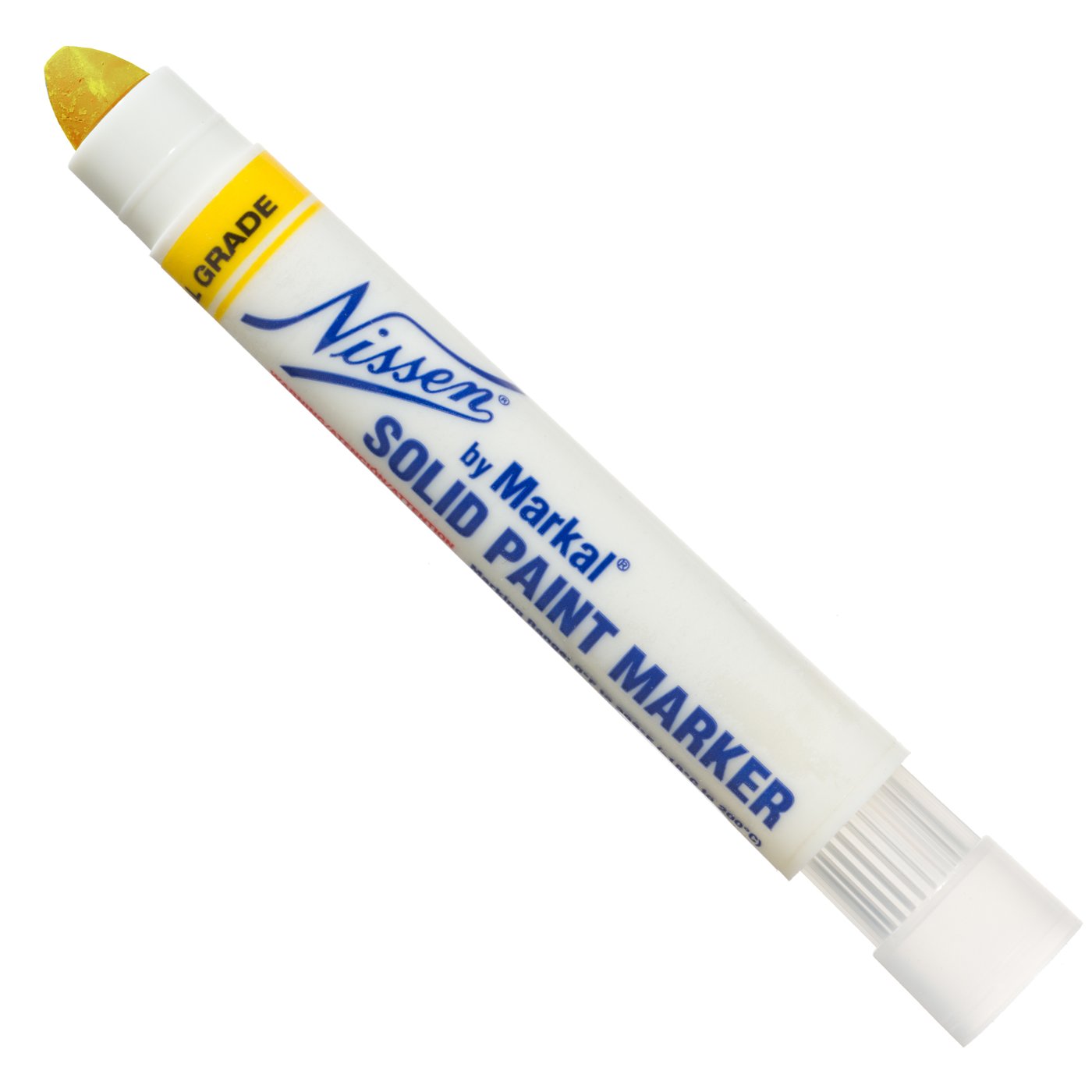

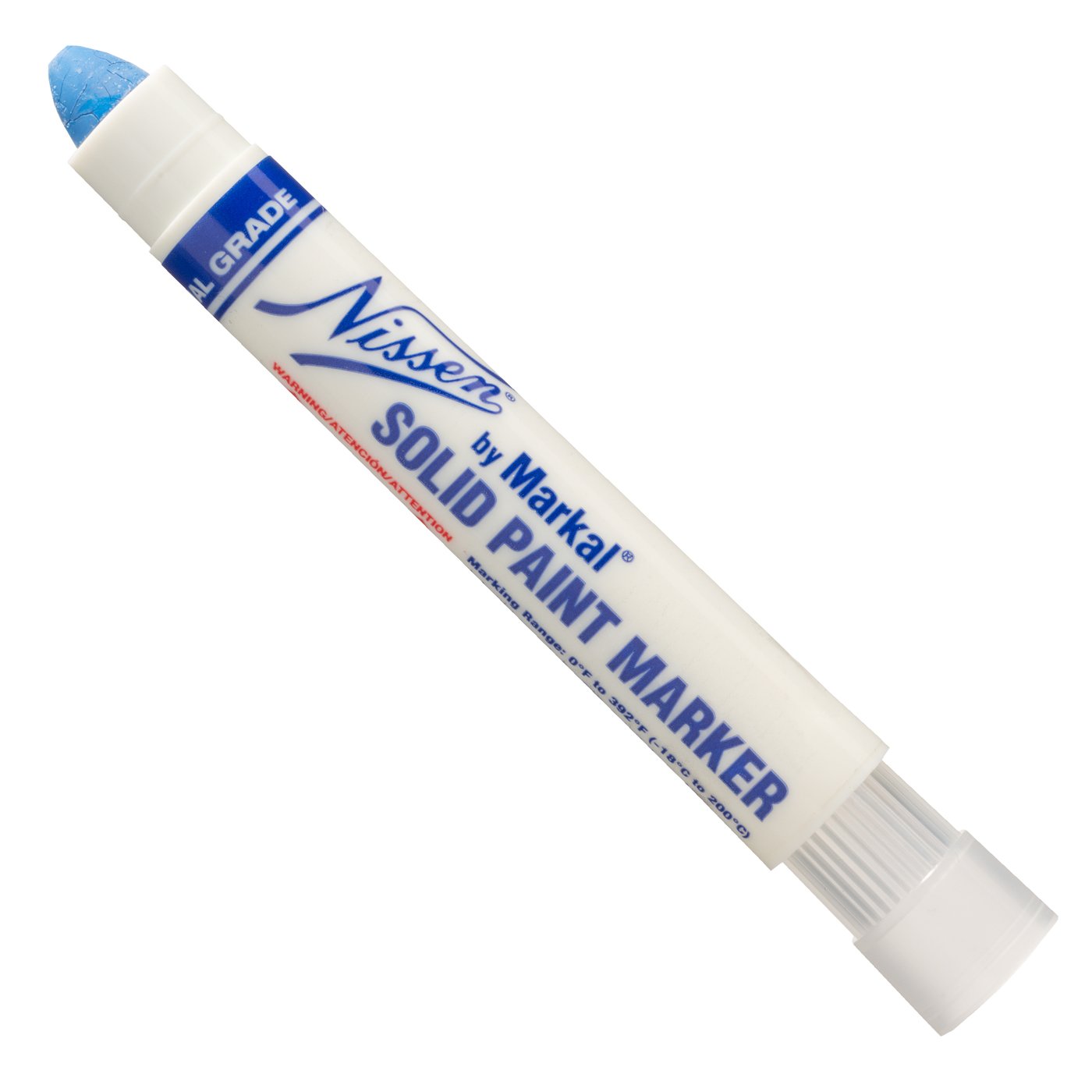

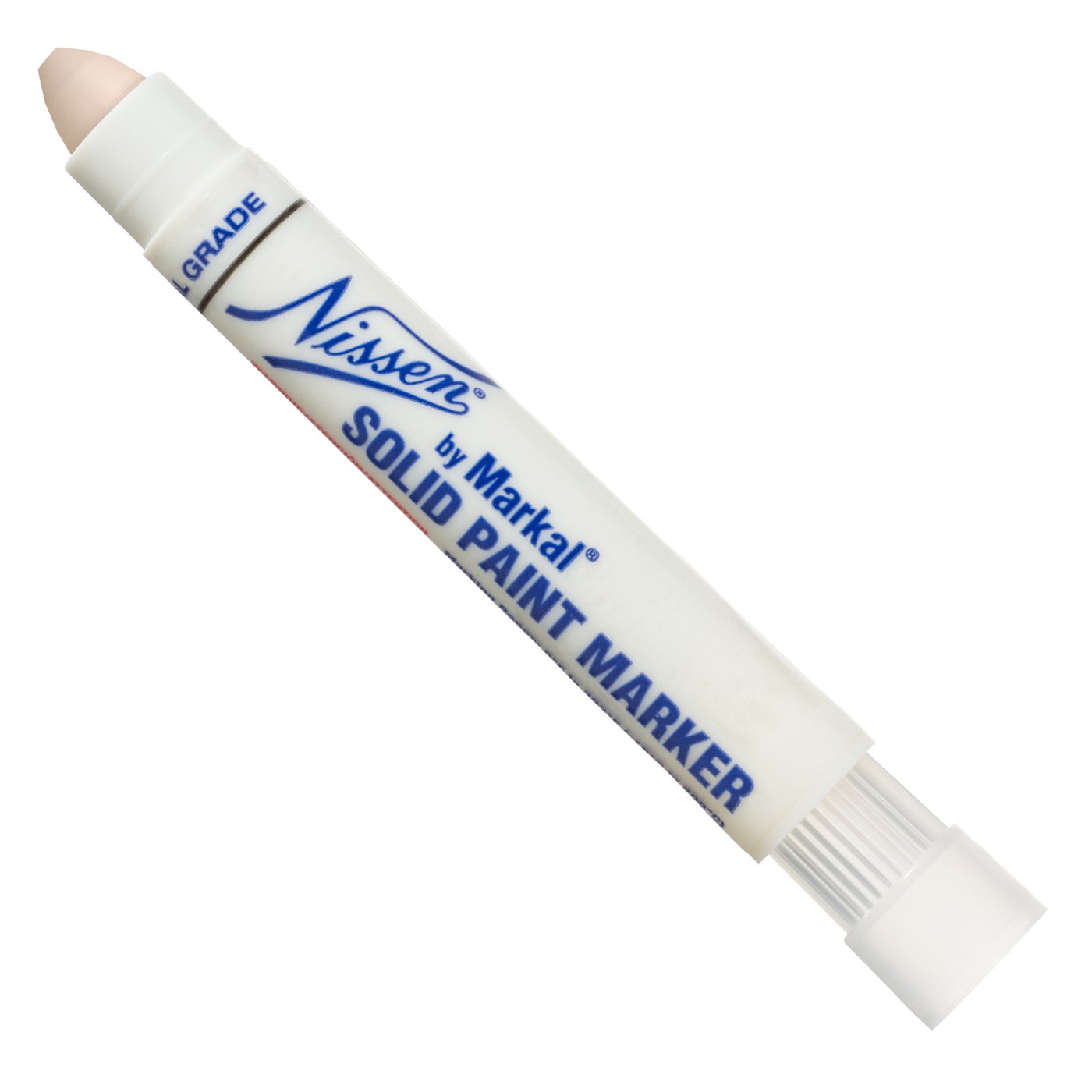

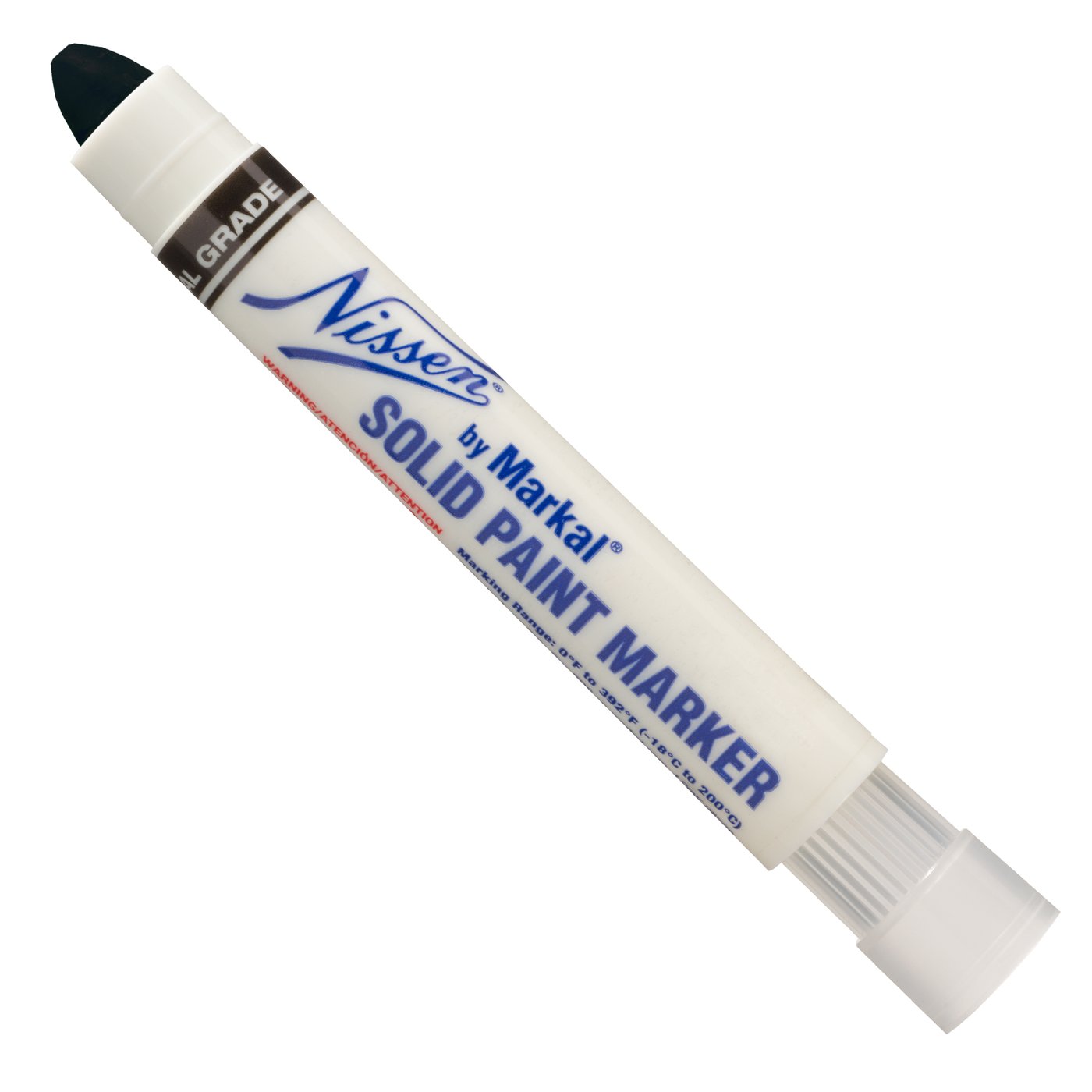

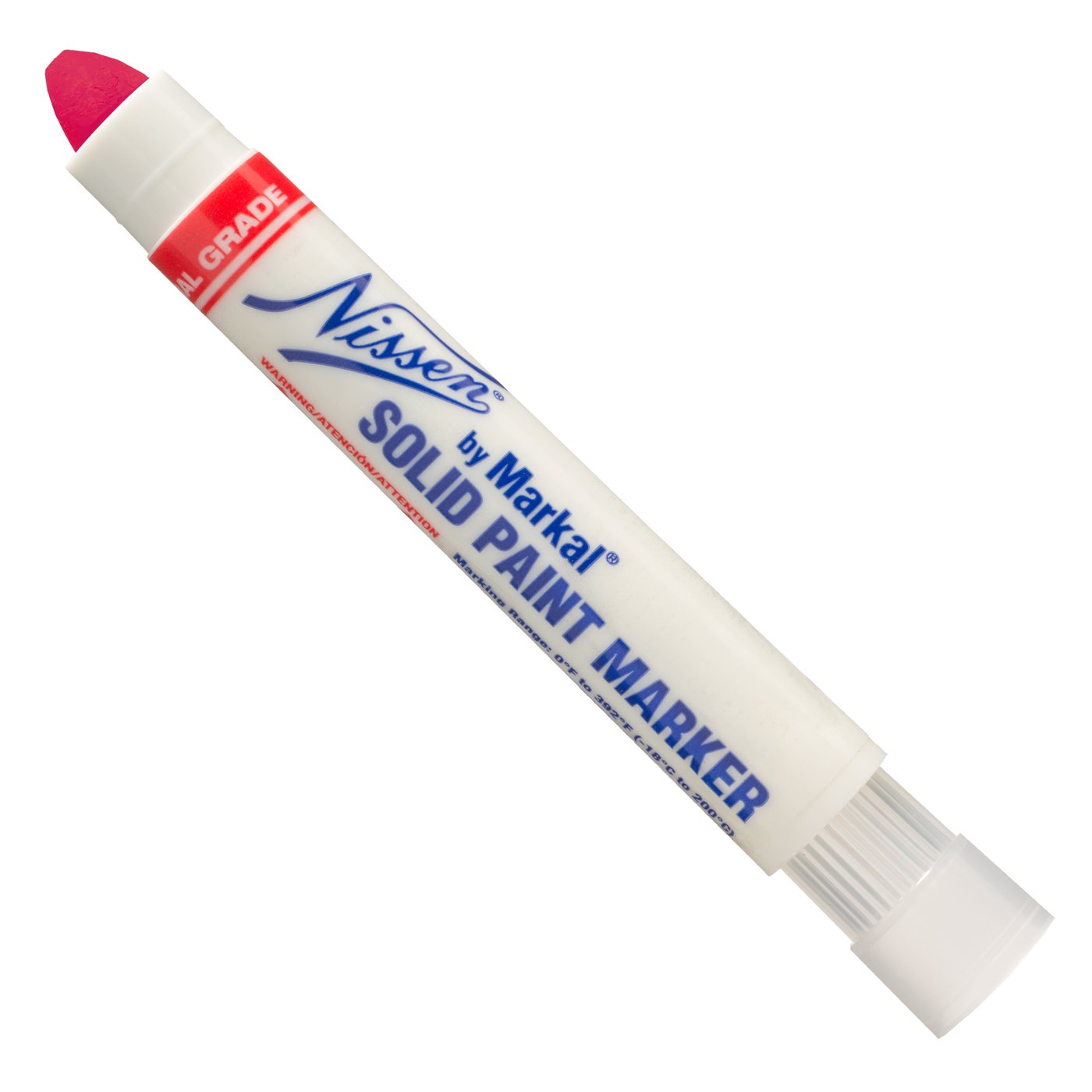

Solid Paint Markers
The smooth writing Nissen Solid Paint Markers make marking smooth, fast and easy. The markers are solid sticks of paint protected by an unbreakable plastic case. They can conveniently and cleanly be carried in your pocket. The plastic case prevents the paint from drying out so it always writes easily and smoothly. The case also allows you to use the entire stick without needing a separate holder.
- Marks on metal, wood, plastic, glass, cardboard, textiles,
etc.
- Writes on any surface: rough or smooth; wet, oily or dry.
Even marks under water.
- Marks won't run.
- Marks are permanent; they won't chip, peel, fade or rub-off.
They withstand heat weathering under adverse conditions.
- If desired, marks can be removed from non-porous surfaces
with standard industrial solvents.
- Available in four fast-drying, lead-free colors.
White, Yellow, Red and Black
- Available in Standard (approximately 5/16" wide line)
and jumbo (approximately 1/2" wide line) version
The Nissen Penamark-S is a stick
of paint in a solid form designed especially for fabricators.
Marks placed on bare metal will bleed through the oil-based primer
and remain visible. The penetrating action can be stopped, so
as not to bleed through the final coating.
- Marks on any surface: rough, smooth, wet, oily or dry.
- Available only in blue.
- Size is 11/16" x 4 1/2".
