Ozat 1" drive impact sockets

Six Point Impact Sockets | Bud Wheel Impact Sockets | Eight Point Impact Sockets |

Twelve Point Impact Sockets | Six Point Thin Wall Impact Sockets |

Ozat Impact Sockets Six Point Impact Sockets

ozat ozat

PART NUMBER NOMINAL OPENINGS DIAMETER CLEARANCE LENGTH OPENING DEPTH

R L MM A/F WHIT D1 D2 R L R L T

OZA.1612M19 OZA.1612M19L 19 3/4" 36 54 26 71 55 100 9.5

OZA.16M20 OZA.16M20L 20 37 54 26 71 55 100 10

OZA.1613 OZA.1613L 13/16" 38 54 26 71 55 100 11

OZA.16M21W07 OZA.16M21W07L 21 7/16" 38 54 26 71 55 100 10

OZA.16M22 OZA.16M22L 22 40 54 26 71 55 100 10

OZA.1614 OZA.1614L 7/8" 40 54 26 71 55 100 13

OZA.16M23 OZA.16M23L 23 41 54 26 71 55 100 12

OZA.16W08 OZA.16W08L 1/2" 41 54 26 71 55 100 13

OZA.1615 OZA.1615L 15/16" 41 54 26 71 55 100 13

OZA.16M24 OZA.16M24L 24 42 54 26 71 55 100 12

OZA.16M25 OZA.16M25L 25 43 54 26 71 55 100 13

OZA.1616 OZA.1616L 1" 43 54 26 71 55 100 13

OZA.16W09 OZA.16W09L 9/16" 44 54 26 71 55 100 13

OZA.16M26 OZA.16M26L 26 45 54 26 71 55 100 13

OZA.1617M27 OZA.1617M27L 27 1-1/16" 46 54 26 71 55 100 13

OZA.16M28W10 OZA.16M28W10L 28 5/8" 47 54 26 71 55 100 14

OZA.1618 OZA.1618L 1-1/8" 48 54 28 71 57 100 16.5

OZA.16M29 OZA.16M29L 29 48 54 28 71 57 100 14

OZA.1619M30 OZA.1619M30L 30 1-3/16" 50 54 28 71 57 100 16.5

OZA.16W11 OZA.16W11L 11/16" 50 54 28 71 57 100 17

OZA.16M31 OZA.16M31L 31 51 54 28 71 57 100 16.5

OZA.1620 OZA.1620L 1-1/4" 51 54 28 71 57 100 17

OZA.16M32 OZA.16M32L 32 51 54 28 71 57 100 16.5

OZA.16M33W12 OZA.16M33W12L 33 3/4" 54 54 28 71 57 100 17

OZA.1621 OZA.1621L 1-5/16" 54 54 31 71 60 100 19

OZA.16M34 OZA.16M34L 34 54 54 31 71 60 100 17

OZA.1622M35 OZA.1622M35L 35 1-3/8" 54 54 31 71 60 100 19

OZA.16W13 OZA.16W13L 13/16" 54 54 31 71 60 100 19

OZA.16M36 OZA.16M36L 36 54 54 31 71 60 100 19

OZA.1623 OZA.1623L 1-7/16" 54 54 31 71 60 100 19

OZA.16M37 OZA.16M37L 37 57 54 31 71 60 100 19

OZA.16W14 OZA.16W14L 7/8" 60 54 31 71 64 100 19

OZA.1624M38 OZA.1624M38L 38 1-1/2" 60 54 35 71 64 100 22

OZA.16M39 OZA.16M39L 39 60 54 35 71 64 100 21.5

OZA.1625 OZA.1625L 1-9/16" 60 54 35 71 64 100 22

OZA.16M40W15 OZA.16M40W15L 40 15/16" 63 54 35 71 64 100 21.5

OZA.1626M41 OZA.1626M41L 41 1-5/8" 63 54 35 71 64 100 22

OZA.16M42 OZA.16M42L 42 63 54 35 71 64 100 21.5

OZA.16W16 OZA.16W16L 1" 63 54 35 71 64 100 21.5

OZA.1627M43 OZA.1627M43L 43 1-11/16" 67 54 40 71 69 100 25

OZA.16M44 OZA.16M44L 44 67 54 40 71 69 100 21.5

OZA.1628 OZA.1628L 1-3/4" 70 54 40 71 69 100 25.5

OZA.16M45W17 OZA.16M45W17L 45 1-1/16" 70 54 40 71 69 100 21.5

OZA.1629M46 OZA.1629M46L 46 1-13/16" 70 54 40 71 69 100 25.5

OZA.16M47 OZA.16M47L 47 70 54 40 71 69 100 23.5

OZA.16W18 OZA.16W18L 1-1/8" 70 54 43 71 72 100 27

OZA.1630 OZA.1630L 1-7/8" 70 54 43 71 72 100 27

OZA.16M48 OZA.16M48L 48 73 54 43 71 72 100 23.5

OZA.1631M49 OZA.1631M49L 49 1-15/16" 73 54 43 71 72 100 27

OZA.16M50 OZA.16M50L 50 73 54 43 71 72 100 23.5

OZA.1632M51 OZA.1632M51L 51 2" 73 54 43 71 72 100 27

OZA.16M52W20 OZA.16M52W20L 52 1-1/4" 78 54 43 71 72 100 27

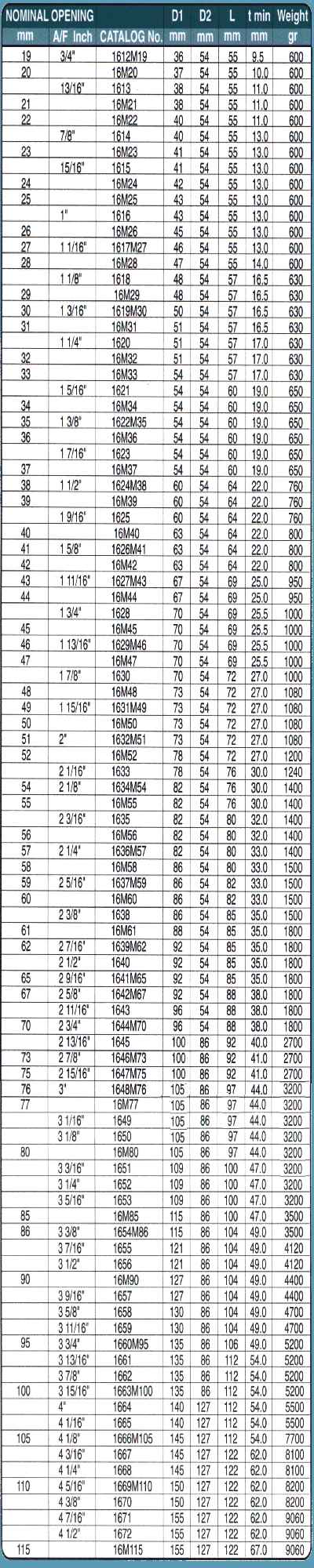

weights for

regular length

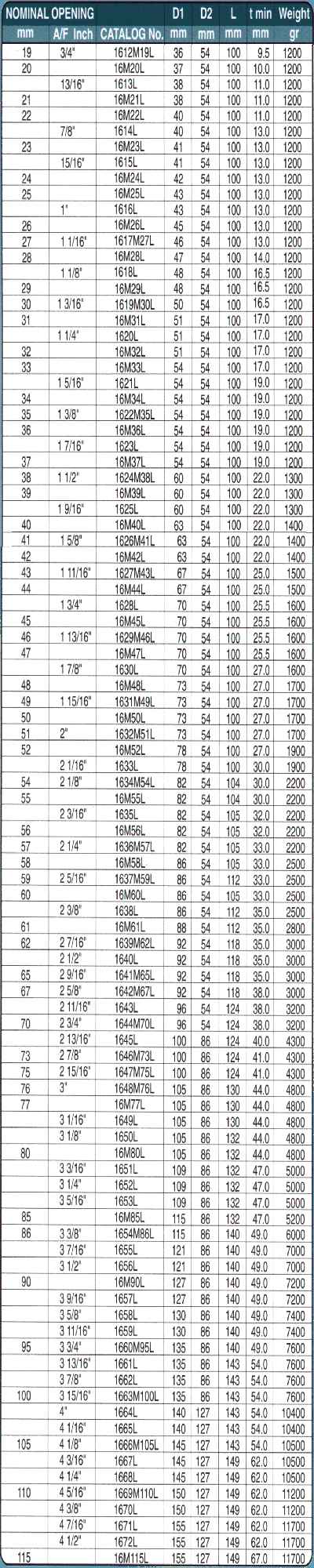

weights for

long length

PART NUMBER NOMINAL OPENINGS DIAMETER CLEARANCE LENGTH OPENING DEPTH

R L MM A/F WHIT D1 D2 R L R L T

OZA.1633 OZA.1633L 2-1/16" 78 54 47 75 76 100 30

OZA.1634M54 OZA.1634M54L 54 2-1/8" 82 54 47 75 76 104 30

OZA.16M55 OZA.16M55L 55 82 54 47 75 76 104 27

OZA.1635 OZA.1635L 2-3/16" 82 54 47 76 80 105 32

OZA.16M56W22 OZA.16M56W22L 56 1-3/8" 82 54 47 76 75 105 28

OZA.1636M57 OZA.1636M57L 57 2-1/4" 82 54 51 76 80 105 33

OZA.16M58 OZA.16M58L 58 86 54 51 76 75 105 28

OZA.1637M59 OZA.1637M59L 59 2-5/16" 86 54 53 83 82 112 33

OZA.16M60 OZA.16M60L 60 86 54 53 83 75 105 28

OZA.1638 OZA.1638L 2-3/8" 86 54 56 83 85 112 35

OZA.16M61W24 OZA.16M61W24L 61 1-1/2" 88 54 56 83 85 112 28

OZA.1639M62 OZA.1639M62L 62 2-7/16" 92 54 56 83 85 118 35

OZA.1640 OZA.1640L 2-1/2" 92 54 56 83 85 118 35

OZA.1641M65 OZA.1641M65L 65 2-9/16" 92 54 56 83 85 118 35

OZA.16W26 OZA.16W26L 1-5/8" 92 54 62 89 85 118 35

OZA.1642M67 OZA.1642M67L 67 2-5/8" 92 54 64 89 91 118 38

OZA.1643 OZA.1643L 2-11/16" 96 54 64 89 88 124 38

OZA.1644M70 OZA.1644M70L 70 2-3/4" 96 54 66 95 88 124 38

OZA.16W28 OZA.16W28L 1-3/4" 96 54 66 95 88 124 39

OZA.1645 OZA.1645L 2-13/16" 100 86 66 95 92 124 40

OZA.1646M73 OZA.1646M73L 73 2-7/8" 100 86 66 95 92 124 41

OZA.1647M75 OZA.1647M75L 75 2-15/16" 100 86 66 95 92 124 41

OZA.1648M76 OZA.1648M76L 76 3" 105 86 67 101 97 130 44

OZA.16M77W30 OZA.16M77W30L 77 1-7/8" 105 86 67 101 97 130 44

OZA.1649 OZA.1649L 3-1/16" 105 86 67 101 97 130 44

OZA.1650 OZA.1650L 3-1/8" 105 86 67 101 97 132 44

OZA.16M80W32 OZA.16M80W32L 80 2" 105 86 67 103 88 132 37

OZA.1651 OZA.1651L 3-3/16" 109 86 71 103 100 132 47

OZA.1652 OZA.1652L 3-1/4" 109 86 71 103 100 132 47

OZA.1653 OZA.1653L 3-5/16" 109 86 71 103 100 132 47

OZA.16M85 OZA.16M85L 85 115 86 71 103 92 132 40

OZA.1654M86W34 OZA.1654M86W34L 86 3-3/8" 2-1/8" 115 86 74 103 104 140 49

OZA.1655 OZA.1655L 3-7/16" 121 86 74 103 104 140 49

OZA.1656 OZA.1656L 3-1/2" 121 86 74 103 104 140 49

OZA.16M90W36 OZA.16M90W36L 90 2-1/4" 127 86 74 103 97 140 43

OZA.1657 OZA.1657L 3-9/16" 127 86 74 103 104 140 48

OZA.1658 OZA.1658L 3-5/8" 130 86 74 103 104 140 49

OZA.1659 OZA.1659L 3-11/16" 130 86 74 103 104 140 49

OZA.1660M95W38 OZA.1660M95W38L 95 3-3/4" 2-3/8" 135 86 82 111 106 140 49

OZA.1661 OZA.1661L 3-13/16" 135 86 82 111 112 143 54

OZA.1662 OZA.1662L 3-7/8" 135 86 82 111 112 143 54

OZA.16W40 OZA.16W40L 2-1/2" 135 86 82 111 112 143 54

OZA.1663M100 OZA.1663M100L 100 3-15/16" 135 86 82 111 112 143 54

OZA.1664 OZA.1664L 4" 140 127 82 111 112 143 54

OZA.1665W42 OZA.1665W42L 4-1/16" 2-5/8" 140 127 82 111 112 143 54

OZA.1666M105 OZA.1666M105L 105 4-1/8" 145 127 82 111 112 143 54

OZA.1667W44 OZA.1667W44L 4-3/16" 2-3/4" 145 127 82 111 122 149 62

OZA.1668 OZA.1668L 4-1/4" 145 127 91 120 122 149 62

OZA.1669M110W46 OZA.1669M110W46L 110 4-5/16" 2-7/8" 150 127 91 120 122 149 62

OZA.1670 OZA.1670L 4-3/8" 150 127 91 120 122 149 62

OZA.1671 OZA.1671L 4-7/16" 155 127 91 120 122 149 62

OZA.1672 OZA.1672L 4-1/2" 155 127 91 120 122 149 62

OZA.16M115W48 OZA.16M115W48L 115 3" 155 127 91 120 120 149 57

weights for

regular length

weights for

long length

Ozat Impact Sockets Thin Wall Impact Sockets

ozat

PART NUMBER NOMINAL OPENINGS DIAMETER CLEARANCE OPENING DEPTH LENGTH

MM A/F WHIT D1 D2 L T

OZA.16M22LT 22 38 54 71 20 100

OZA.1614LT 7/8" 38 54 71 26 100

OZA.16M23LT 23 38 54 71 24 100

OZA.16W08LT 1/2" 38 5 71 26 100

OZA.1615LT 15/16" 38 54 71 26 100

OZA.16M24LT 24 38 54 71 24 100

OZA.16M25LT 25 41 54 71 26 100

OZA.1616LT 1" 41 54 71 26 100

OZA.16W09LT 9/16" 41 54 71 26 100

OZA.16M26LT 26 44 54 71 26 100

OZA.1617M27LT 27 1-1/16" 44 54 71 26 100

OZA.16M28W10LT 28 5/8" 44 54 71 28 100

OZA.1618LT 1-1/8" 44 54 71 33 100

OZA.16M29LT 29 44 54 71 28 100

OZA.1619M30LT 30 1-3/16" 49 54 71 33 100

OZA.16W11LT 11/16" 49 54 71 34 100

OZA.16M31LT 31 49 54 71 33 100

OZA.1620LT 1-1/4" 49 54 71 34 100

OZA.16M32LT 32 49 54 71 33 100

OZA.16M33W12LT 33 3/4" 52 54 71 34 100

OZA.1621LT 1-5/16" 52 54 71 38 100

OZA.16M34LT 34 52 54 71 34 100

OZA.1622M35LT 35 1-3/8" 52 54 71 38 100

OZA.16W13LT 13/16" 52 54 71 38 100

OZA.16M36LT 36 54 54 71 38 100

OZA.1623LT 1-7/16" 54 54 71 38 100

OZA.16M37lT 37 55 54 71 38 100

OZA.16W14LT 7/8" 57 54 71 38 100

OZA.1624M38LT 38 1-1/2" 57 54 71 44 100

OZA.16M39LT 39 57 54 71 43 100

OZA.1625LT 1-9/16" 57 54 71 44 100

OZA.16M40W15LT 40 15/16" 60 54 71 43 100

OZA.1626M41LT 41 1-5/8" 60 54 71 44 100

OZA.16M42LT 42 60 54 71 43 100

OZA.16W16LT 1" 60 54 71 43 100

OZA.1627M43LT 43 1-11/16" 63 54 71 50 100

OZA.16M44LT 44 63 54 71 43 100

OZA.1628LT 1-3/4" 67 54 71 51 100

OZA.16M45W17LT 45 1-1/16" 67 54 71 43 100

OZA.1629M46LT 46 1-13/16" 67 54 71 51 100

weights for

long length

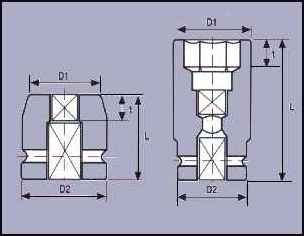

Bud Wheel Impact Sockets

ozat

PART NUMBER NOMINAL OPENINGS DIAMETERS LENGTH OPENING DEPTH

R L D1 D2 R L T

OZA.16M17B 17mm 40 54 55 9

OZA.16M21W07B 21mm 7/16" WHIT 47 54 55 10

OZA.1613B OZA.1613BL 13/16" 47 54 55 100 12

OZA.1615B OZA.1615BL 15/16" 52.5 54 60 100 13

OZA.1624BS 13/16" 1-1/2"HEX 57 54 100 14.5

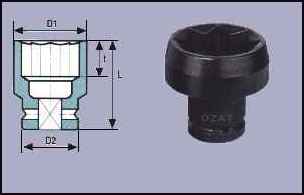

Eight Point Impact Sockets

ozat

PART NUMBER SIZE DIAMETERS LENGTH OPENING DEPTH

R L MM A/F D1 D2 R L T

OZA.1620DS OZA.1620LDS 1-1/4" 60 54 58 81 17

OZA.1621DS OZA.1621LDS 1-5/16" 63 54 58 81 19

OZA.1622M35DS OZA.1622M35LDS 35 1-3/8" 67 60 58 81 19

OZA.1623DS OZA.1623LDS 1-7/16" 67 60 58 81 19

OZA.1624M38DS OZA.1624M38LDS 38 1-1/2" 70 60 62 87 22

OZA.1625DS OZA.1625LDS 1-9/16" 78 60 62 87 22

OZA.1626M41DS OZA.1626M41LDS 41 1-5/8" 78 60 62 88 22

OZA.1627M43DS OZA.1627M43LDS 43 1-11/16" 82 60 67 88 25

OZA.1628DS OZA.1628LDS 1-3/4" 82 60 67 88 25.5

OZA.1629M46DS OZA.1629M46LDS 46 1-13/16" 86 60 67 88 25.5

OZA.1630DS OZA.1630LDS 1-7/8" 86 60 70 88 27

OZA.1632M51DS OZA.1632M51LDS 51 2" 92 60 70 88 27

OZA.1634M54DS OZA.1634M54LDS 54 2-1/8" 100 60 75 97 30

OZA.1635DS OZA.1635LDS 2-3/16" 100 60 78 97 32.5

OZA.1636M57DS OZA.1636M57LDS 57 2-1/4" 100 60 78 100 32

OZA.1638DS OZA.1638LDS 2-3/8" 105 60 82 100 35

OZA.1640DS OZA.1640LDS 2-1/2" 109 60 88 100 35

weights for

regular length

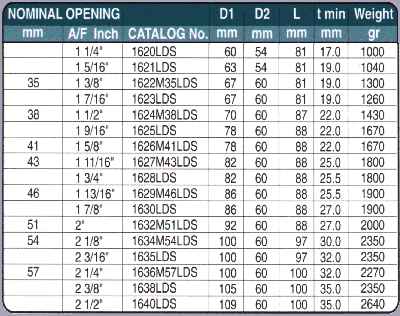

weights for

long length

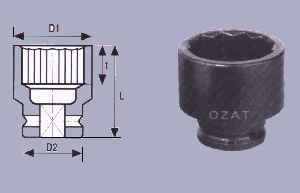

Twelve Point Impact Sockets

ozat

PART NUMBER NOMINAL OPENINGS DIAMETER LENGTH OPENING DEPTH

MM AF D1 D2 L T

OZA.1615DH 15/16" 41 54 55 13

OZA.16OZA.16DH 1" 43 54 55 13

OZA.1617M27DH 27 1-1/16" 46 54 55 13

OZA.1618DH 1-1/8" 48 54 57 16.5

OZA.1619M30DH 30 1-3/16" 50 54 57 16.5

OZA.1620DH 1-1/4" 51 54 57 17

OZA.1621DH 1-5/16" 54 54 60 19

OZA.1622M35DH 35 1-3/8" 54 54 60 19

OZA.1623DH 1-7/16" 54 54 60 19

OZA.1624M38DH 38 1-1/2" 60 54 64 22

OZA.1625DH 1-9/16" 60 54 64 22

OZA.1626M41DH 41 1-5/8" 63 54 64 22

OZA.1627M43DH 43 1-11/16" 67 54 69 25

OZA.1628DH 1-3/4" 70 54 69 25.5

OZA.1629M46DH 46 1-13/16" 70 54 69 25.5

OZA.1630DH 1-7/8" 70 54 72 27

OZA.1631M49DH 49 1-15/16" 73 54 72 27

OZA.1632M51DH 51 2" 73 54 72 27

OZA.1633DH 2-1/16" 78 54 76 30

OZA.1634M54DH 54 2-1/8" 82 54 76 30

OZA.16M55DH 55 82 54 76 27

OZA.1635DH 2-3/16" 82 54 80 32

OZA.1636M57DH 57 2-1/4" 82 54 80 33

OZA.1638DH 2-3/8" 86 54 85 35

OZA.1640DH 2-1/2" 92 54 85 35

OZA.1641M65DH 65 2-9/16" 92 54 85 35

OZA.1642M67DH 67 2-5/8" 92 54 91 38

OZA.1644M70DH 70 2-3/4" 96 54 88 38

OZA.1645DH 2-13/16" 100 86 92 40

OZA.1648M76DH 76 3" 105 86 97 44

OZA.1650DH 3-1/8" 105 86 97 44

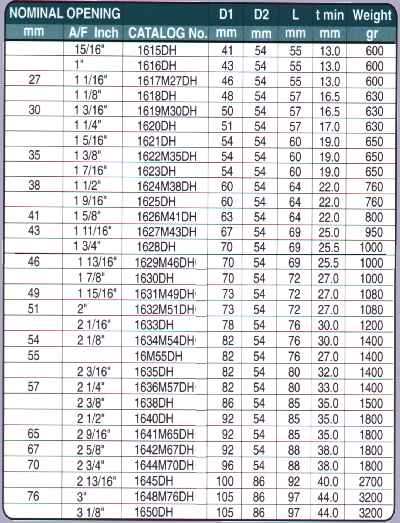

weights for

regular length

link to product table of contents link to what's "NEW" link to price list

Newman Tools Logo

Newman Tools Inc.
185 Iber Road
Stittsville, Ottawa, Ontario, Canada K2S 1E7
Phone: 1-613-836- 6776 or 1-800-465-1384
Fax: 1-613 -836 -9070 or 1-800-605-2442

Newman Tools Inc.
151 New Park Avenue
Hartford, CT 06106, USA
Phone: 1-800-465-1384
Fax: 1-800-605-2442

Email: info@newmantools.com

Please send comments, questions, email to tom@newmantools.com ( this email will be returned advising you to resend the email to the following email address )

spamfilter1 "at" newmantools "dot" com. This notation is to prevent the robots from harvesting this email address.

return to Newman Tools Home Page.

Servicing the Canadian provinces of Newfoundland, Nova Scotia, New Brunswick, Prince Edward Island, Quebec, Ontario, Manitoba, Saskatchewan, Alberta ,British Columbia and the states of Alabama, Alaska, Arizona, Arkansas, California, Colorado, Connecticut, Delaware, Florida, Georgia, Hawaii, Idaho, Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maine, Maryland, Massachusetts, Michigan, Minnesota, Mississippi, Missouri, Montana, Nebraska, Nevada, New Hampshire, New Jersey, New Mexico, New York, North Carolina, North Dakota, Ohio, Oklahoma, Oregon, Pennsylvania, Rhode Island, South Carolina, South Dakota, Tennessee, Texas, Utah, Vermont, Virginia, Washington, West Virginia, Wisconsin,Wyoming

We can ship via UPS to Afghanistan , Aland Islands , Albania , Algeria , American Samoa , Andorra , Angola , Anguilla , Antigua & Barbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Azores , Bahamas , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bermuda , Bhutan , Bolivia , Bonaire , Bosnia , Botswana , Brazil , British Virgin Isles , Brunei , Bulgaria , Burkina Faso , Burundi , Cambodia , Cameroon , Canada , Canary Islands , Cape Verde , Cayman Islands , Central African Republic , Chad , Chile , China , Colombia , Comoros , Congo , Cook Islands , Costa Rica , Croatia , Curacao , Cyprus , Czech Republic , Democratic Republic of Congo , Denmark , Djibouti , Dominica , Dominican Republic , Ecuador , Egypt , El Salvador , England , Equatorial Guinea , Eritrea , Estonia , Ethiopia , Faeroe Islands , Fiji , Finland , France , French Guiana , French Polynesia , Gabon , Gambia , Georgia , Germany , Ghana , Gibraltar , Greece , Greenland , Grenada , Guadeloupe , Guam , Guatemala , Guernsey , Guinea , Guinea-Bissau , Guyana , Haiti , Holland , Honduras , Hong Kong , Hungary , Iceland , India , Indonesia , Iraq , Ireland , Israel , Italy , Ivory Coast , Jamaica , Japan , Jersey , Jordan , Kazakhstan , Kenya , Kiribati , Kosrae , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Liechtenstein , Lithuania , Luxembourg , Macau , Macedonia (Fyrom) , Madagascar , Madeira , Malawi , Malaysia , Maldives , Mali , Malta , Marshall Islands , Martinique , Mauritania , Mauritius , Mayotte , Mexico , Micronesia , Moldova , Monaco , Mongolia , Montenegro , Montserrat , Morocco , Mozambique , N. Mariana Islands , Namibia , Nepal , Netherlands , Netherlands Antilles , New Caledonia , New Zealand , Nicaragua , Niger , Nigeria , Norfolk Island , Northern Ireland , Norway , Oman , Pakistan , Palau , Panama , Papua New Guinea , Paraguay , Peru , Philippines , Poland , Ponape , Portugal , Puerto Rico , Qatar , Reunion , Romania , Rota , Russia , Rwanda , Saba , Saipan , San Marino , Saudi Arabia , Scotland , Senegal , Serbia , Seychelles , Sierra Leone , Singapore , Slovakia , Slovenia , Solomon Islands , South Africa , South Korea , Spain , Sri Lanka , St. Barthelemy , St. Christopher , St. Croix , St. Eustatius , St. John , St. Kitts & Nevis , St. Lucia , St. Maarten , St. Martin , St. Thomas , St. Vincent/Grenadines , Suriname , Swaziland , Sweden , Switzerland , Syria , Tahiti , Taiwan , Tajikistan , Tanzania , Thailand , Timor Leste , Tinian , Togo , Tonga , Tortola , Trinidad & Tobago , Truk , Tunisia , Turkey , Turkmenistan , Turks & Caicos Islands , Tuvalu , Uganda , Ukraine , Union Island , United Arab Emirates , United Kingdom , United States , Uruguay, US Virgin Islands , Uzbekistan , Vanatu , Vatican City State , Venezuela , Vietnam , Virgin Gorda , Wales , Wallia & Futuna Islands , Western Samoa , Yap , Yemen , Zambia , Zimbabwe

updated November 2008, May 2001
Newman Tools Inc.
