Alignment Tool & Eccentric Socket

order on line

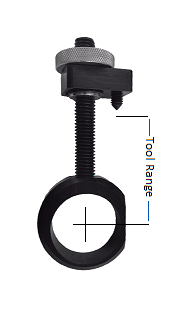

Slide Align Tool Sets

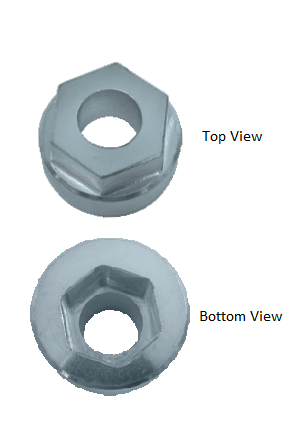

Use the smooth power of an eccentric socket to turn rotary motion into controlled linear movement. By rotating the eccentric socket, linear movement is transferred to the motor foot, creating a precise movement to the desired alignment position. If you have precise measuring equipment, Side Align provides you with the ability to make precise horizontal adjustments within .001 inches or closer.

Our Side Align tool sets are available in standard or metric sizes, and come as part of our AT-1104 or AT-1108 sets, as well as individually as replacements. These durable alignment tools add efficiency to an otherwise tedious, meticulous task.

Below are our Side Align tool sets, as well as a specification breakdown for their individual components.

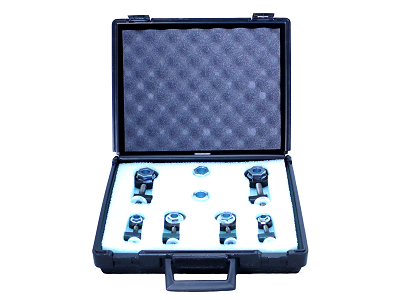

PET.AT-1104 AT-1104

2-300 HP

Securing bolt sizes: 3/8" to 3/4".

Weight: 12 lbs

PET.AT-1104M (metric)

1-224 kW

Securing bolt sizes: 8 to 16 mm

Weight: 5.5 kg



PET.AT-1108 AT-1108

2-300+ HP

Securing bolt sizes: 3/8 to 1-1/4".

Weight: 32 lbs

PET.AT-1108M (metric)

1-224+ kW

Securing bolt sizes: 8 to 30 mm

Weight: 14.5 kg

 Alignment Tool RangeEccentric Socket SizesMotor Application Range
ModelQty in SetTool RangeActuator Socket RequiredQty in SetActuator Socket SizeStud Hold SizePower RangeAC Motor FrameDC Motor Frame
Alignment Tool Sets - Inch
AT-1104 Set ATN-1 2 13/16 to 1 5/8 in. ES-1 2 9/16 in. 3/8 in. 2-30 HP 182-286TS 182A-288A
ATN-2 2 7/8 to 2 in. ES-2 2 ¾ in. ½ in.
ATN-3 2 7/8 to 2 5/8 in. ES-3 2 15/16 in. 5/8 in. 20-300 HP 324T-449TS 323A-368A
ES-4 2 1 1/8 in. ¾ in.
Alignment Tool Sets - Metric
AT-1104M Set ATN-1 2 21 to 42 mm MES-1 2 13 mm 8 mm 1-22 kW 80-132 132-180
ATN-2 2 22 to 51 mm MES-2 2 17 mm 10 mm
ATN-3 2 22 to 67 mm MES-3 2 19 mm 12 mm 14-224 kW 160-225 200-225
MES-4 2 24 mm 16 mm

 Alignment Tool RangeEccentric Socket SizesMotor Application Range
ModelQty in SetTool RangeActuator Socket RequiredQty in SetActuator Socket SizeStud Hold SizePower RangeAC Motor FrameDC Motor Frame
Alignment Tool Sets - Inch
AT-1108 Set ATN-1 2 13/16 to 1 5/8 in. ES-1 2 9/16 in. 3/8 in. 2-30 HP 182-286TS 182A-288A
ATN-2 2 7/8 to 2 in. ES-2 2 ¾ in. ½ in.
ATN-3 2 7/8 to 2 5/8 in. ES-3 2 15/16 in. 5/8 in. 20-300 HP 324T-449TS 323A-368A
ES-4 2 1 1/8 in. ¾ in.
ATN-4 2 1½ to 4½ in. ES-5 2 1 5/16 in. 7/8 in. 300+ HP 5040-505S 403A-448A
ES-6 2 1½ in. 1 in.
ATN-5 2 1 7/8 to 6 1/8 in. ES-7 2 1 11/16 in. 1 1/8 in. 300+ HP 400M-8211S 403A-448A
ES-8 2 1 7/8 in. 1¼ in.
Alignment Tool Sets - Metric
AT-1108M Set ATN-1 2 21 to 42 mm MES-1 2 13 mm 8 mm 1-22 kW 80-132 132-180
ATN-2 2 22 to 51 mm MES-2 2 17 mm 10 mm
ATN-3 2 22 to 67 mm MES-3 2 19 mm 12 mm 14-224 kW 160-225 200-225
MES-4 2 24 mm 16 mm
ATN-4 2 38 to 114 mm MES-5 2 30 mm 20 mm 224+ kW 250-355 250-355
MES-6 2 36 mm 24 mm
ATN-5 2 48 to 156 mm MES-7 2 46 mm 30 mm 224+ kW 400 400
