Silvent BG-007

Specs | Blowing properties | Benefits |

Model No. SIL.BG007

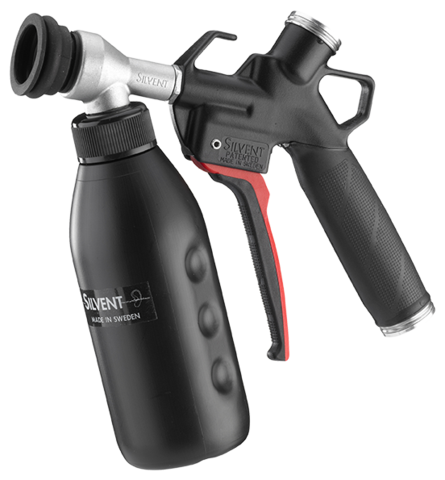

  • SILVENT BG-007: hole-blower that replaces conventional air guns when cleaning out blind holes.
  • Clean-out of blind holes generates extremely high and dangerous noise levels.
  • BG-007 eliminates hazardous noise and collects flying chips and debris directly in a sealed container.
  • This closed system ensures a cleaner, quieter, and safer working environment.
  • Fitted with a specially designed rubber collar that completely seals off the hole during clean-out.
  • The flexibility of the collar allows adjustment to the ergonomically correct working angle.
  • The collection vessel is easy to empty and can be rotated 360°.
  • Provides both top and bottom air supply connection.

Specifications
  SI units US units
Blowing force 1.0 N 3.5 oz
Air consumption 4.4 Nm³/h 2.6 scfm
Sound level 77 dB(A)
Air pattern Misc.
Connection 1/4" BSP 1/4"-18 NPT
Connection type Female
Material (nozzle) Stainless steel
Weight 0.305 kg 0.672 lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi
Benefits
Replace open pipe 4 mm 5/32 inch
Noise reduction 18 dB(A) 71 %
Air/cost savings 26 Nm³/h 91.8 scfm
Fulfill OSHA standards Yes
Meet the EU Machine directives Yes
Blowing properties at different pressures
SI units (kPa) 200 400 600 800 1000
Blowing force (N) 0.4 0.8 1.2 1.6 2.0
Air consumption (Nm³/h) 1.4 3.1 5.2 7.2 9.1
Sound level (dB(A)) 66.2 74.3 78.9 82.7 85.4
US units (psi) 40 60 80 100 120
Blowing force (oz) 2.0 3.0 3.9 4.9 5.9
Air consumption (scfm) 1.1 1.9 2.8 3.7 4.5
Sound level (dB(A)) 68.8 74.6 78.7 81.2 83.7
