Titan Flange Spreader

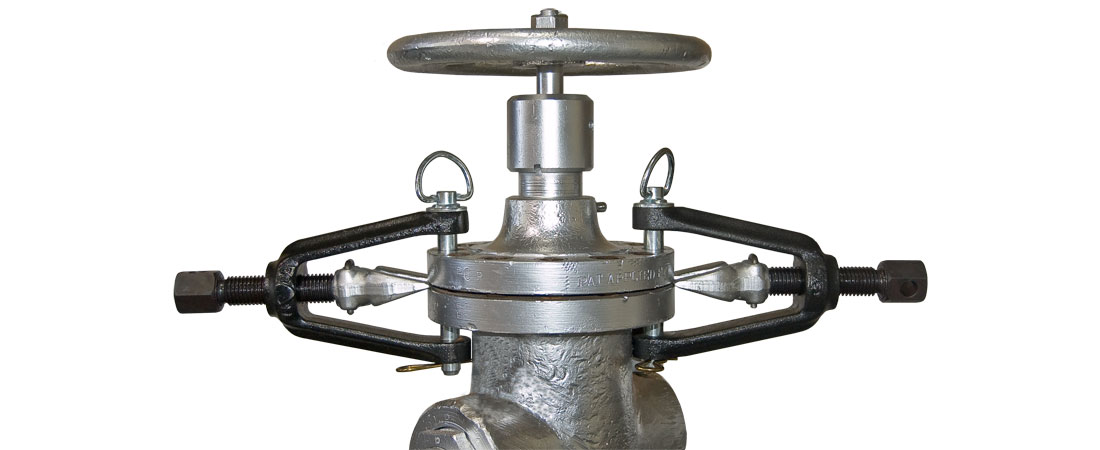

TITAN FLANGE SPREADERS have been carefully designed for safety in separating pipe and ring-type-joint flanges used in refineries, petrochemical, agrichemical and chemical plants, electrical and gas utility stations, pipe lines, oil fields, and various industrial facilities.






CATALOG
No.


SPREAD

PIN
DIAMETER


WEIGHT

TIT.N14

 2-3/4" 5/8" 8 lbs.

TIT.N48

 3-3/4" 3/4" 9 lbs.

TIT.N812

 4-7/8" 7/8" 10 lbs.

TIT.N1216

 6-1/8" 1" 15 lbs.

TIT.N1620

 7-1/2" 1-1/8" 18 lbs.

TIT.N2024

 9-1/8" 1-1/4" 20 lbs.



*SMALLER PINS AVAILABLE UPON REQUEST.


SIZES OF FLANGES IN EACH SERIES WHICH SPREADERS WILL FIT
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
1
5
0		 N14 X X X X X X X
N48 X X X X X X X
N812 X X X X X X X X X X
N1216 X X X X X X X X X X X X X
N1620 X X X X X X X X X X X
N2024 X X X X X X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
3
0
0		 N14 X X X X X X
N48 X X X X X X
N812 X X X
N1216 X X X X X X X
N1620 X X X X X X X X X
N2024 X X X X X X X X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
4
0
0		 N14 X X X
N48 X * X X
N812 * X X X X X
N1216 X X X X X
N1620 X X X X X X X X
N2024 X X X X X X X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
6
0
0		 N14 X X X
N48 X * X X
N812 * X X X X
N1216 X X X X
N1620 X X X X X
N2024 X X X X X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
9
0
0		 N14
N48 X X X X X
N812 X X X X X X X
N1216 X X X X X X
N1620 X X X X X X
N2024 X X X X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
1
5
0
0		 N14
N48 X X X X X
N812 X X X X X X
N1216 X X X X
N1620 X X X
N2024 X X X X
.50 .75 1 1.25 1.5 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42
A
S
A
2
5
0
0		 N14
N48 X X
N812 X X X X X X
N1216 X X X X
N1620 X X X
N2024 X X X X
* Special flange pins required. Call for information.
