Portable cordless Dot Peen machine E-MARK EVO

High performance. Portable. Built to last.

Part Number: SIC.E-MARK

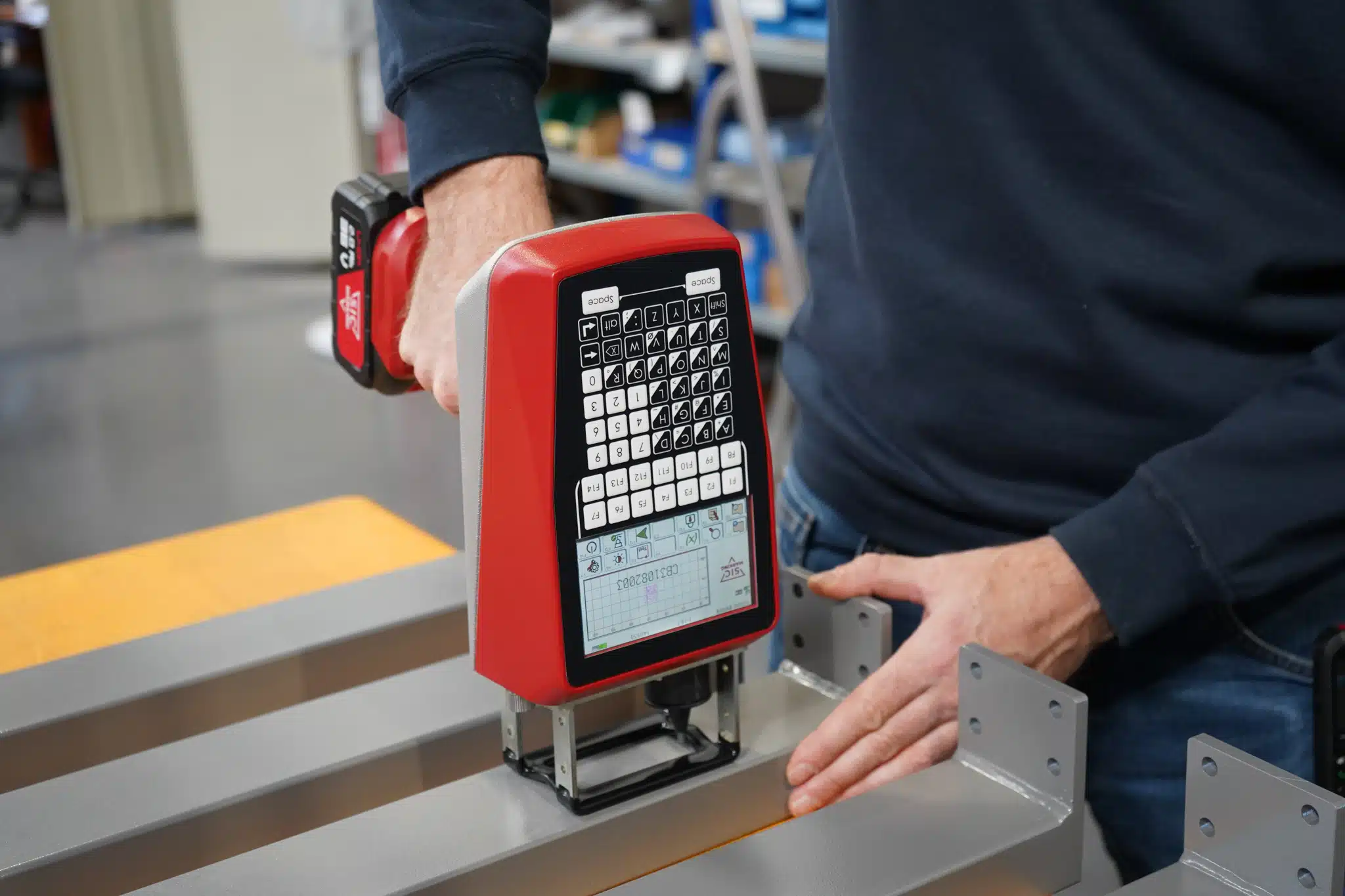

Sic E-Mark Evo Marking Machine



Description:

  • Wireless, all-in-one dot peen marking, capable of marking all material types.

  • Equipped with a 36V Li-Ion battery delivering up to 3 hours of continuous runtime.

  • Features three interchangeable contact faces.

  • Tungsten carbide stylus ensuring permanent, unalterable marking of texts, logos, and 2D Datamatrix codes.

  • Optional booster for deeper marking depth and enhanced readability after painting or surface treatment.

Back to Top of Page



Technical Specifications

Power supply 36 V battery
Battery charging time 1 hour
Battery life 3 hours
Marking window 60 x 25 mm
External dimensions 279 x 280 x 135 mm
Weight 3,2 kg
Stylus Tungsten carbide
Memory space Over 2,000 files





Back to Top of Page



Accessories





Barcode Reader

Barcode Reader

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

Booster Option

Booster Option

The Booster option is a card integrated into the e-MARK EVO that ensures fast, precise, and deep marking, providing excellent visibility even after painting or surface treatment.

Column Base

Column Base

The column base transforms the portable marking machine into a stable, stationary workstation, allowing for precise positioning and easy height adjustment depending on the part. Ideal for repetitive series or small parts, it offers stability, quality, and consistency in marking while retaining the versatility of the e-MARK EVO.

Front Face Options

Front Face Options

The e-TOUCH EVO has three interchangeable front face options: one with a non-slip surface, one that is smaller and adjustable, and one that is magnetic. They can be quickly exchanged without tools, allowing immediate adaptation to any part geometry, whether large, cylindrical, or with small surfaces.

Back to Top of Page



Key Benefits

Compact, all-in-one portable marking gun

Lightweight and well-balanced machine, designed for single-handed operation.

Complete package, including a carrying case, 2 batteries, and a fast charger.

100% standalone solution: control unit with embedded HMI and integrated keypad.



Machine suited for all part types

Mobile and flexible.

Marking of heavy and oversized parts with ease.

3 available contact faces: anti-slip, adjustable, and magnetic.



Simple and reliable marking

File creation and management directly on the machine or from a workstation.

Flexible operation, with operator/supervisor mode allowing critical parameter lockout.

Secure your markings with duplicate marking detection, alerting the operator whenever a repeated serial number is identified.



Easy to use

Work without interruption with two high-capacity batteries.

Mark materials up to 62 HRC hardness.

Choose your machine based on your application:

  • Standard version: Fast and precise marking.
  • Booster version: Fast and precise marking, with deeper mark depth and enhanced visibility after painting or surface treatment.



Back to Top of Page



Video Demonstration

EMBED IFRAME HERE (INSIDE THE ELEMENT I FRAME )

The e-MARK EVO is a portable industrial marking solution designed to offer complete freedom of marking directly on your parts.

 Text, symbols, logos, traceability codes... the e-MARK EVO adapts to all your marking needs, without any constraints in terms of shape, position, or environment. Compact, intuitive, and powerful, it enables precise and durable marking, both in the workshop and on site. Developed by SIC Marking, the e-MARK EVO meets industry requirements for flexibility, reliability, and productivity.

 Discover how the e-MARK EVO simplifies everyday industrial marking.
