Series 149 Arch or Hollow Punches

series 149 hollow punches

only remaining stock is available for shopping online while supplies last

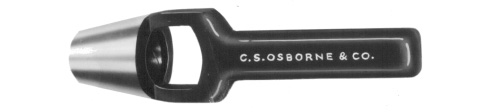

Osborne arch punches are drop forged in one piece from the finest special carbon steel in sizes from 3/16" to 2-1/4" diameter. Larger sizes are made with our properly engineered two piece welded construction. A unique feature of the Osborne arch punch is the inside taper which permits the punchings to clear easily through the barrel. Punches have fully polished barrel and black enamel handle. The cutting edge is fully tempered all the way through and properly finished to provide long use trouble free punching. There is no other Hollow punch that can compare.



arch punch

MEETS GOVERNMENT STANDARDS

Sizes shown below in inches with black enamel finish


Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-3/16 - 2
OSB.149-1/4 - 3
OSB.149-5/16 - 3
OSB.149-3/8 - 4
OSB.149-7/16 - 5
OSB.149-1/2 - 7
OSB.149-9/16 - 6
OSB.149-5/8 - 8
OSB.149-11/16 - 9
OSB.149-3/4 - 9
OSB.149-13/16 - 8
OSB.149-7/8 - 12
OSB.149-15/16 - 12
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-1 - 13
OSB.149-1 1/16 - 12
OSB.149-1 1/8 - 15
OSB.149-1 3/16 - 14
OSB.149-1 1/4 1 3
OSB.149-1 5/16 1 3
OSB.149-1 3/8 1 6
OSB.149-1 7/16 1 8
OSB.149-1 1/2 1 15
OSB.149-1 9/16 1 13
OSB.149-1 5/8 1 9
OSB.149-1 11/16 1 8
OSB.149-1 3/4 2 5
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-1 13/16 2 3
OSB.149-1 7/8 2 3
OSB.149-1 15/16 2 2
OBS.149-2 3 5
OBS.149-2 1/16 3 6
OSB.149-2 1/8 3 7
OSB.149-2 3/16 1 10
OSB.149-2 1/4 1 13
OSB.149-2 5/16 1 15
OSB.149-2 3/8 2 -
OSB.149-2 7/16 1 10
OSB.149-2 1/2 2 4
OSB.149-2 9/16 1 15
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-2 5/8 2 4
OSB.149-2 11/16 2 -
OSB.149-2 3/4 2 5
OSB.149-2 13/16 1 13
OSB.149-2 7/8 2 8
OSB.149-2 15/16 3 -
OSB.149-3 2 8
OSB.149-3 1/16 2 1
OSB.149-3 1/8 2 9
OSB.149-3 3/16 2 2
OSB.149-3 1/4 2 9
OSB.149-3 5/16 3 -
OSB.149-3 3/8 3 14
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-3 7/16 2 15
OBS.149-3 1/2 4 1
OSB.149-3 9/16 2 4
OSB.149-3 5/8 3 15
OSB.149-3 11/16 3 12
OSB.149-3 3/4 4 2
OSB.149-3 13/16 3 6
OSB.149-3 7/8 4 1
OSB.149-3 15/16 3 12
OSB.149-4 4 12
OSB.149-4 1/16 4 5
OSB.149-4 1/8 3 14
OSB.149-4 3/16 4 6
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-4 1/4 5 -
OSB.149-4 5/16 5 -
OBS.149-4 3/8 5 1
OSB.149-4 7/16 5 1
OSB.149-4 1/2 5 1
OSB.149-4 9/16 5 2
OSB.149-4 5/8 5 4
OSB.149-4 11/16 5 4
OSB.149-4 3/4 5 5
OSB.149-4 13/16 5 6
OSB.149-4 7/8 5 6
OSB.149-4 15/16 5 7
OSB.149-5 5 8
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-5 1/16 5 8
OSB.149-5 1/8 5 10
OSB.149-5 3/16 5 10
OSB.149-5 1/4 4 14
OSB.149-5 5/16 5 11
OSB.149-5 3/8 5 12
OSB.149-5 7/16 5 12
OSB.149-5 1/2 5 13
OSB.149-5 9/16 5 13
OSB.149-5 5/8 5 14
OSB.149-5 11/16 5 14
OSB.149-5 3/4 5 14
OSB.149-5 13/16 5 15
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-5 7/8 5 15
OSB.149-5 15/16 6 -
OSB.149-6 6 -
OSB.149-6 1/16 6 -
OSB.149-6 1/8 6 1
OSB.149-6 3/16 6 1
OSB.149-6 1/4 6 2
OSB.149-6 5/16 6 2
OSB.149-6 3/8 6 3
OSB.149-6 7/16 6 3
OSB.149-6 1/2 6 3
OSB.149-6 9/16 6 4
OSB.149-6 5/8 6 4
Diameter
(inches)
Weight ea
(lbs) (oz)
OSB.149-6 11/16 6 4
OSB.149-6 3/4 6 5
OSB.149-6 13/16 6 5
OSB.149-6 7/8 6 5
OSB.149-6 15/16 6 6
OSB.149-7 6 6













Sizes shown below in millimeters with green enamel finish.



Diameter
(mm)
Weight ea
(lbs) (oz)
OSB.149-M4 - 3
OSB.149-M5 - 3
OSB.149-M6 - 3
OSB.149-M7 - 3
OSB.149-M8 - 3
OSB.149-M9 - 5
OSB.149-M10 - 5
OSB.149-M11 - 5
OSB.149-M12 - 5
OSB.149-M13 - 6
OSB.149-M14 - 6
OSB.149-M15 - 8
OSB.149-M16 - 8
OSB.149-M17 - 9
OSB.149-M18 - 9
OSB.149-M19 - 11
OSB.149-M20 - 10
Diameter
(mm)
Weight ea
(lbs) (oz)
OSB.149-M21 - 12
OSB.149-M22 - 12
OSB.149-M23 - 12
OSB.149-M24 1 -
OSB.149-M25 1 -
OSB.149-M26 1 -
OSB.149-M27 1 -
OSB.149-M28 1 2
OSB.149-M29 1 2
OSB.149-M30 1 2
OSB.149-M31 1 6
OSB.149-M32 1 4
OSB.149-M33 1 6
OSB.149-M34 1 6
OSB.149-M35 1 8
OSB.149-M36 1 10
OSB.149-M37 1 8
Diameter
(mm)
Weight ea
(lbs) (oz)
OSB.149-M38 2 -
OSB.149-M39 2 -
OSB.149-M40 1 13
OSB.149-M41 2 12
OSB.149-M42 2 12
OSB.149-M43 3 -
OSB.149-M44 3 -
OSB.149-M45 3 -
OSB.149-M46 3 -
OSB.149-M47 3 8
OSB.149-M48 3 8
OSB.149-M49 3 12
OSB.149-M50 3 12
OSB.149-M51 4 -
OSB.149-M52 4 -

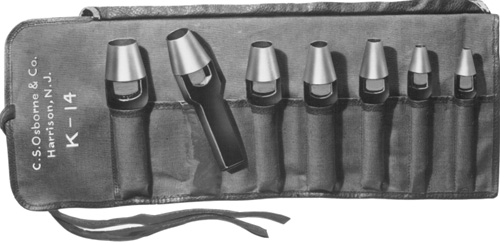

Arch Punch Set - OSB.K-14
No. K-14


This set of seven arch punches includes the sizes most widely used. They are put up in a sturdy, easy to use canvas tool roll as shown.

1 each of the following sizes Osborne No. 149- Arch Punch
Sizes (in) 1/4 3/8 1/2 5/8 3/4 7/8 1
Weight per set (lbs) 4
Part Number OSB.K-14



 .
