Spring Plungers, with ball and internal hexagon - metric series

EH 22030

Search the Newman Tools site





EH 22030.

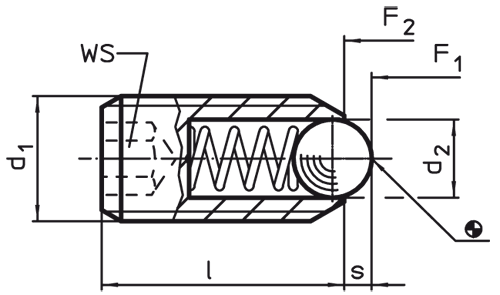

Spring Plungers, with ball and internal hexagon


Note:
To be used for locating or for applying pressure, as a detent or for ejection.
Temperature range up to 250 °C.



Material:
Body:
  • Free cutting steel, blackened
  • Stainless steel 1.4305
Ball:
  • Ball-bearing steel, hardened
  • Stainless steel, hardened
Spring:
  • Stainless steel

Indication:
Standard spring load: no marking
Heavy spring load: marked with two lines




free cutting steel, standard spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0003 2203.003 M3 1,5 8 0,4 1,5 3 4,5 0,3
HAL.22030.0004 2203.004 M4 2,5 12 0,8 2 8,5 14 0,7
HAL.22030.0005 2203.005 M5 3 14 0,9 2,5 8 14 1,2
HAL.22030.0006 2203.006 M6 3,5 15 1,0 3 11,0 18 1,8
HAL.22030.0008 2203.008 M8 4,5 18 1,5 4 18,0 31 3,9
HAL.22030.0010 2203.010 M10 6,0 23 2,0 5 24,0 45 8,1
HAL.22030.0012 2203.012 M12 8,0 26 2,5 6 26,0 49 13
HAL.22030.0016 2203.016 M16 10,0 33 3,5 8 41,0 86 32
HAL.22030.0020 2203.020 M20 12,0 43 4,5 10 56,0 111 66
HAL.22030.0024 2203.024 M24 15,0 48 5,5 12 81,0 151 106
*statistical average value



free cutting steel, heavy spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0045 2203.045 M5 3 14 0,9 2,5 15,0 22 1,2
HAL.22030.0046 2203.046 M6 3,5 15 1,0 3 19,0 28 1,8
HAL.22030.0048 2203.048 M8 4,5 18 1,5 4 36,0 62 4,1
HAL.22030.0050 2203.050 M10 6,0 23 2,0 5 57,0 104 8,2
HAL.22030.0052 2203.052 M12 8,0 26 2,5 6 61,0 110 13
HAL.22030.0056 2203.056 M16 10,0 33 3,5 8 68,0 142 32
HAL.22030.0060 2203.060 M20 12,0 43 4,5 10 84,0 166 66
HAL.22030.0064 2203.064 M24 15,0 48 5,5 12 127,0 237 106
*statistical average value





stainless steel, standard spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0203 2203.203 M3 1,5 8 0,4 1,5 3 4,5 0,28
HAL.22030.0204 2203.204 M4 2,5 12 0,8 2 8,5 14 0,8
HAL.22030.0205 2203.205 M5 3 14 0,9 2,5 8 14 1,3
HAL.22030.0206 2203.206 M6 3,5 15 1,0 3 11,0 18 1,9
HAL.22030.0208 2203.208 M8 4,5 18 1,5 4 18,0 31 4,1
HAL.22030.0210 2203.210 M10 6,0 23 2,0 5 24,0 45 8,2
HAL.22030.0212 2203.212 M12 8,0 26 2,5 6 26,0 49 13
HAL.22030.0216 2203.216 M16 10,0 33 3,5 8 41,0 86 32
HAL.22030.0220 2203.220 M20 12,0 43 4,5 10 56,0 111 67
HAL.22030.0224 2203.224 M24 15,0 48 5,5 12 81,0 151 107
*statistical average value





stainless steel, heavy spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0245 2203.245 M5 3 14 0,9 2,5 15,0 22 1,2
HAL.22030.0246 2203.246 M6 3,5 15 1,0 3 19,0 28 1,9
HAL.22030.0248 2203.248 M8 4,5 18 1,5 4 36,0 62 4,2
HAL.22030.0250 2203.250 M10 6,0 23 2,0 5 57,0 104 8,2
HAL.22030.0252 2203.252 M12 8,0 26 2,5 6 61,0 110 13
HAL.22030.0256 2203.256 M16 10,0 33 3,5 8 68,0 142 32
HAL.22030.0260 2203.260 M20 12,0 43 4,5 10 84,0 166 66
HAL.22030.0264 2203.264 M24 15,0 48 5,5 12 127,0 237 107
*statistical average value
