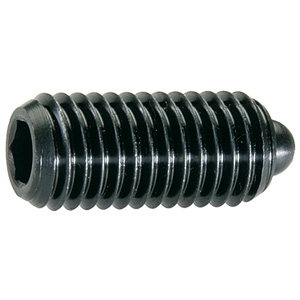

Spring Plungers, with pin and
internal hexagon


Note:
To be used for locating or for applying pressure, as a detent or for ejection.
Temperature range up to 250 °C.

Material:
Body:
  • Free cutting steel, blackened
  • Stainless steel 1.4305
Pin:
  • Free cutting steel, hardened, blackened
  • Stainless steel 1.4305
Spring:
  • Stainless steel

Indication:
Standard spring load: no marking
Heavy spring load: marked with two lines






free cutting steel, standard spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0104 2203.104 M4 1,8 12 1,5 2 4,5 12,5 0,6
HAL.22030.0105 2203.105 M5 2,4 14 2 2,5 5 13 1,3
HAL.22030.0106 2203.106 M6 2,7 15 2,0 3 6 17 1,9
HAL.22030.0108 2203.108 M8 3,8 18 2,0 4 16 33 4,2
HAL.22030.0110 2203.110 M10 4,5 23 2,5 5 19 42 8,5
HAL.22030.0112 2203.112 M12 6,2 26 3,5 6 22 57 13
HAL.22030.0116 2203.116 M16 8,5 33 4,5 8 38 78 32
HAL.22030.0120 2203.120 M20 10,0 43 6,5 10 39 81 67
HAL.22030.0124 2203.124 M24 13,0 48 8,0 12 72 155 106



* statistical average value



free cutting steel, heavy spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0146 2203.146 M6 2,7 15 2,0 3 11 25 2
HAL.22030.0148 2203.148 M8 3,8 18 2,0 4 23 59 4,2
HAL.22030.0150 2203.150 M10 4,5 23 2,5 5 20 54 8,5
HAL.22030.0152 2203.152 M12 6,2 26 3,5 6 38 96 13
HAL.22030.0156 2203.156 M16 8,5 33 4,5 8 50 100 32
HAL.22030.0160 2203.160 M20 10,0 43 6,5 10 52 133 67
HAL.22030.0164 2203.164 M24 13,0 48 8,0 12 91 223 106



* statistical average value



stainless steel, standard spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0304 2203.304 M4 1,8 12 1,5 2 4,5 12,5 0,7
HAL.22030.0305 2203.305 M5 2,4 14 2 2,5 5 13 1,2
HAL.22030.0306 2203.306 M6 2,7 15 2,0 3 6 17 2,1
HAL.22030.0308 2203.308 M8 3,8 18 2,0 4 16 33 4,2
HAL.22030.0310 2203.310 M10 4,5 23 2,5 5 19 42 8,6
HAL.22030.0312 2203.312 M12 6,2 26 3,5 6 22 57 13
HAL.22030.0316 2203.316 M16 8,5 33 4,5 8 38 78 32
HAL.22030.0320 2203.320 M20 10,0 43 6,5 10 39 81 67
HAL.22030.0324 2203.324 M24 13,0 48 8,0 12 72 155 104



* statistical average value



stainless steel, heavy spring load

Ref. No. former Ref. No. d1 d2 l s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0346 2203.346 M6 2,7 15 2,0 3 11 25 1,9
HAL.22030.0348 2203.348 M8 3,8 18 2,0 4 23 59 4,4
HAL.22030.0350 2203.350 M10 4,5 23 2,5 5 20 54 8,6
HAL.22030.0352 2203.352 M12 6,2 26 3,5 6 38 96 14
HAL.22030.0356 2203.356 M16 8,5 33 4,5 8 50 100 32
HAL.22030.0360 2203.360 M20 10,0 43 6,5 10 52 133 68
HAL.22030.0364 2203.364 M24 13,0 48 8,0 12 91 223 105



* statistical average value
