Carbide Tipped Chucking Reamers Taper Shank

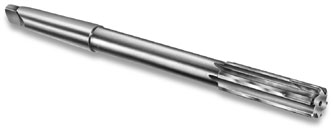

TYPE 2402 -- STRAIGHT FLUTES & TAPER SHANK -- FRACTIONAL SIZES
Taper shank and straight polished flutes.
Carbide tips brazed to one piece hardened tool steel bodies.
Cutting diameter tolerance plus .0003" minus .0000".

USE:
For general reaming of steel, cast iron, non-ferrous metals, plastics and non-metals.

OPTIONS
Intermediate decimal & metric sizes ( as indicated in extended table below).
Cutting diameter reduced for small steps or pilot.
Radius end or end chamfer other than 45º.
End cutting.
Rose grind (twice normal back taper).
Semi-finished type reamers in stock.
Closer tolerances available
+.0002"
+.0001"


order by R1131-"size"
Tool
Diameter		 Dimensions Finished To Modified Tool Diameter
Taper No. of Flutes Length Modified Diameter Range
Frac. Dec. Flute Overall Low High
    1/4     .2500   1   4   1  1/2    6             .2381     .2530
    9/32     .2812   1   4   1  1/2    6             .2531     .2840
    5/16     .3125   1   4   1  1/2    6             .2841     .3150
    11/32     .3438   1   4   1  1/2    6             .3151     .3470
    3/8     .3750   1   4   1  3/4    7             .3471     .3780
    13/32     .4062   1   4   1  3/4    7             .3781     .4090
    7/16     .4375   1   4   1  3/4    7             .4091     .4410
    15/32     .4688   1   4   1  3/4    7             .4411     .4720
    1/2     .5000   1   6   2           8             .4721     .5030
    17/32     .5312   1   6   2           8             .5031     .5340
    9/16     .5625   1   6   2           8             .5341     .5660
    19/32     .5938   1   6   2           8             .5661     .5970
    5/8     .6250   2   6   2  1/4    9             .5971     .6280
    21/32     .6562   2   6   2  1/4    9             .6281     .6590
    11/16     .6875   2   6   2  1/4    9             .6591     .6910
    23/32     .7188   2   6   2  1/4    9             .6911     .7220
    3/4     .7500   2   6   2  1/2    9  1/2      .7221     .7530
    25/32     .7812   2   6   2  1/2    9  1/2      .7531     .7840
    13/16     .8125   2   6   2  1/2    9  1/2      .7841     .8160
    27/32     .8438   2   6   2  1/2    9  1/2      .8161     .8470
    7/8     .8750   2   6   2  5/8    10             .8471     .8780
    29/32     .9062   2   6   2  5/8    10             .8781     .9090
    15/16     .9375   3   8   2  5/8    10             .9091     .9410
    31/32     .9688   3   8   2  5/8    10             .9411     .9720
 1           1.0000   3   8   2  3/4    10  1/2      .9721   1.0030
 1  1/16   1.0625   3   8   2  3/4    10  1/2    1.0031   1.0660
 1  1/8    1.1250   3   8   2  7/8    11           1.0661   1.1280
 1  3/16   1.1875   3   8   2  7/8    11           1.1281   1.1905
 1  1/4    1.2500   4   8   3           11  1/2    1.1906   1.2530
 1  5/16   1.3125   4   8   3           11  1/2    1.2531   1.3155
 1  3/8    1.3750   4   8   3  1/4    12           1.3156   1.3780
 1  7/16   1.4375   4   8   3  1/4    12           1.3781   1.4405
 1  1/2    1.5000   4   8   3  1/2    12  1/2    1.4406   1.5030
 1  9/16   1.5625   4   8   3  1/2    12  1/2    1.5031   1.5660
 1  5/8    1.6250   4   8   3  3/4    13           1.5661   1.6280
 1 11/16   1.6875   4   8   3  3/4    13           1.6281   1.6910
 1  3/4    1.7500   4   10   4           13  1/2    1.6911   1.7530
 1 13/16   1.8125   4   10   4           13  1/2    1.7531   1.8160
 1  7/8    1.8750   4   10   4  1/4    14           1.8161   1.8780
 1 15/16   1.9375   4   10   4  1/4    14           1.8781   1.9410
 2           2.0000   4   12   4  1/4    14           1.9411   2.0030
