Reco Induction Bearing Heater
Dimensions
Model SC110D | Model SC | Model
BC | Model BCS | Raising Blocks
link to accessories(
bearing sentry, pyrometer/thermometer) page
link to accessories( bearing sentry, pyrometer/thermometer) page
link
to Operating Instructions (110K) | Feuillet D'Utilisation ( 110k)
The
Reco Induction Bearing Heater is the superior method of expanding
bearings, gears, sprockets, couplings and sleeves. For placement
on shafts, it is the safest, quickest, most economical method
of applying heat.
Induction heating is safe - no fire hazard from
open flames or contamination from hot oil baths or forcing cold
bearings on with a hammer
Evenly heats the bearing's inner race for longer life from proper installation
Quick, positive bearing installation - correct alignment is assured to reduce costly shutdown
Portable - just plug it in, requires less man hours
Steel case for durability and long life
Can be used to demagnetize bearings
Available in 3 models to handle most applications
Reco bearing heaters come complete with two standard cross bars for a wider range of bearings
All bearing heaters are single phase.
|
|
|
|
|
|
|
| SC | 4-3/4" | 3-5/8" | 3/4" | 3/4" | 9-1/4" | 9" |
| BC | 8" | 7" | 1-1/4" | 1-1/4" | 14-3/4" | 16" |
| BC Special | 12-1/4" | 7" | 1-1/4" | 1-1/4" | 18-3/4" | 16" |
- Handles Bearing from the smallest bearing up to 11" O.D x 4-3/8" wide.
- Computer chip automatically monitors and stabilizes temperature and de-magnetizes bearing
- One unit covers a wide range of bearings, gears, sprockets, coupling and sleeves
- Optional raising block available to increase bearing O.D. capacity to 14"
- All bearing heaters are single phase.
|
|
|
optional cross bars |
|

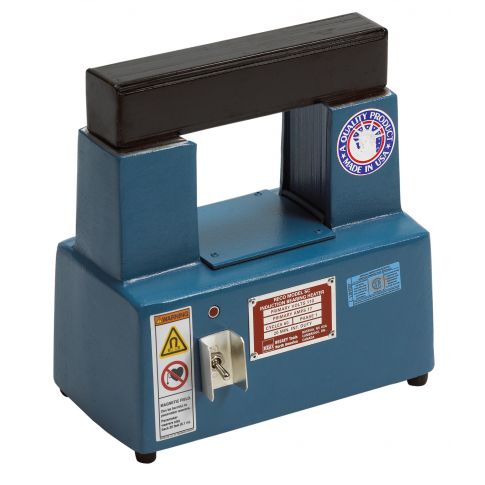

| RECO-SC110D | 110V ( 17 amp) | 3/4" , 2" | 1/2" *,1-1/4 | 56 lbs |
- Choice of Either 110 V or 220V models
- Handles Bearing from the smallest bearing up to 11" O.D x 4-3/8" wide.
- One unit covers a wide range of bearings, gears, sprockets, coupling and sleeves
- Optional raising block available to increase bearing O.D. capacity to 14"
- All bearing heaters are single phase.
- order on-line
*1/2" bar is not available in Canada
Catalog Number Voltage standard cross bars optional cross bars Approx weight RECO-SC110 110V ( 17 amp) 3/4" , 2" 1/2" *,1-1/4 52 lbs RECO-SC220 220V ( 9 amp) 3/4", 2" 1/2" *,1-1/4" 52 lbs - order on-line
- Choice of either 220V, 440V or 550V Models
- Handling bearing from the smallest bearing up to 22" OD x 8" wide
- One unit covers a wide range of bearings, gears, sprockets, coupling and sleeves
- Optional raising block available to increase bearing O.D. capacity to 32"
- All bearing heaters are single phase.
Catalog Number Voltage standard cross bars optional cross bars Approx weight RECO-BC220 220V
( 30 amp)1-1/4, 3" 3/4", 1", 2" 200 lbs. RECO-BC440 440V
( 20amp)1-1/4, 3" 3/4", 1", 2" 200 lbs RECO-BC550 550V
( 20 amp)1-1/4, 3" 3/4", 1", 2" 200 lbs
- Choice of either 220V, 440V or 550V Models
- Handling bearing from the smallest bearing up to 22" OD x 12.25" wide
- One unit covers a wide range of bearings, gears, sprockets, coupling and sleeves
- All bearing heaters are single phase.
Optional raising block available to increase bearing O.D. capacity to 32"
|
|
|
optional cross bars |
|
|
220V ( 30 amp) |
1-1/4, 3" | 1" *, 2" | 235 lbs. |
| RECO-BCS440 | 440V ( 20amp) |
1-1/4, 3" | 1" *, 2" | 235 lbs. |
| RECO-BCS550 | 550V ( 20 amp) |
1-1/4, 3" | 1" *, 2" | 235 lbs. |
CAUTION:
Bearing Heater should not be set within 24" of metal structures
To Demagnetize:
Simply remove bar, turn heater on and pass bearing several times
between the two upright columns without contacting columns.
Warning
DO NOT operate an induction bearing heat if you have a heart pace-maker.
The strong magnetic field emitted my the heater may affect operation
of such devices.
- provides additional height utilizing existing unit to handle larger bearing outside diameters
- SC raising blocks increase SC bearing heater capacity up to 15" OD.
- BC raising blocks increase BC and BC Special bearing heater
capacity up to 32" OD
Catalog Number Height Width Approx Weight RECO-SCRB
(fits SC bearing Heaters)2-3/8" 2-5/8" 7.5 lbs. RECO-BCRB
(fits BC and BC Special Bearing Heaters5" 3-5/8" 31.0 lbs.
