Large Size 37° Rol-Air Flaring Tools


LARGE SIZE 37° ROL-AIR® FLARING TOOLS
For 3/4", 7/8", 1", 1-1/4", 1-1/2" and 2" O.D. tubing.

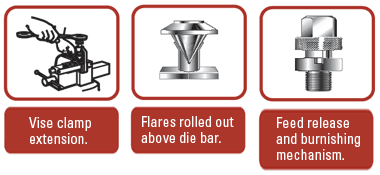

Three cylinders in flaring cone roll out 37° flare above die block. Flares soft steel, copper, aluminum and fully annealed stainless steel tubing. Roller action cuts effort required; maintains original wall thickness; eliminates stress concentration. Feed release and burnishing action. Vise clamp extension on yoke. Heat treated dies clamp tubing without marking it. Satin chrome and black finish. Furnished in tool case.

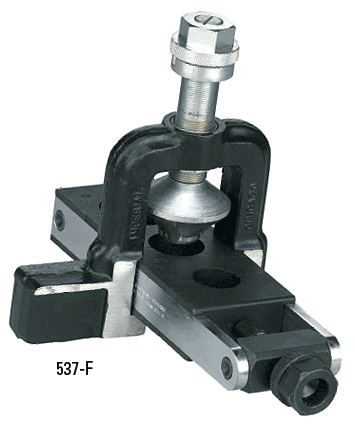

IMP.537-F Flares and burnishes 3/4", 7/8", 1" and 1-1/4" O.D. tubing. Wt. 13.0 lbs.

IMP.637-F Flares and burnishes 1-1/4", 1-1/2" and 2" O.D. tubing.
Wt. 13.0 lbs.

*Conforms to Federal Specification GGG-F-451a,Type 1, Class 1, Style B.



Download the Tubing Tool Selector
Reference Guide 01 (PDF)

37° PRECISION FLARING TOOL
For 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4",
1", 1-1/4" and 1-1/2'' O.D. tubing.

IMP.407-FA Precision tool flares (37°) 1/8" hard stainless
steel and other tubing to extremely close tolerances.
Swivel-head clamp locks tubing in smooth bore die
blocks. Lathe type tube feed. Flares rolled out by
ball-bearing mounted concentric flaring cone. Tool
must be clamped in vise. Will flare 1/8" hard stainless
steel tubing in the sizes and wall thicknesses listed
below. In some cases these wall thicknesses can be
exceeded when flaring aluminum, copper or soft steel
tubing. In tool case. Wt. 50.0 lbs.

Facing and deburring attachments not included with 407-FA.

IMP.407-F Same as 407-FA, except includes the facing
and deburring attachments.

IMP.S74460 Internal deburring tool for 1/8" to 1/2" O.D. tubing.
IMP.S74455 Internal deburring tool for 5/8" to 1-1/2" O.D. tubing.
IMP.S74447 External deburring tool.
IMP.S74462 Facing tool.
